GN545.2 Oil Sight Glass, Plastic, without Thread

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - with reflector

Type B - without reflector

Product Description

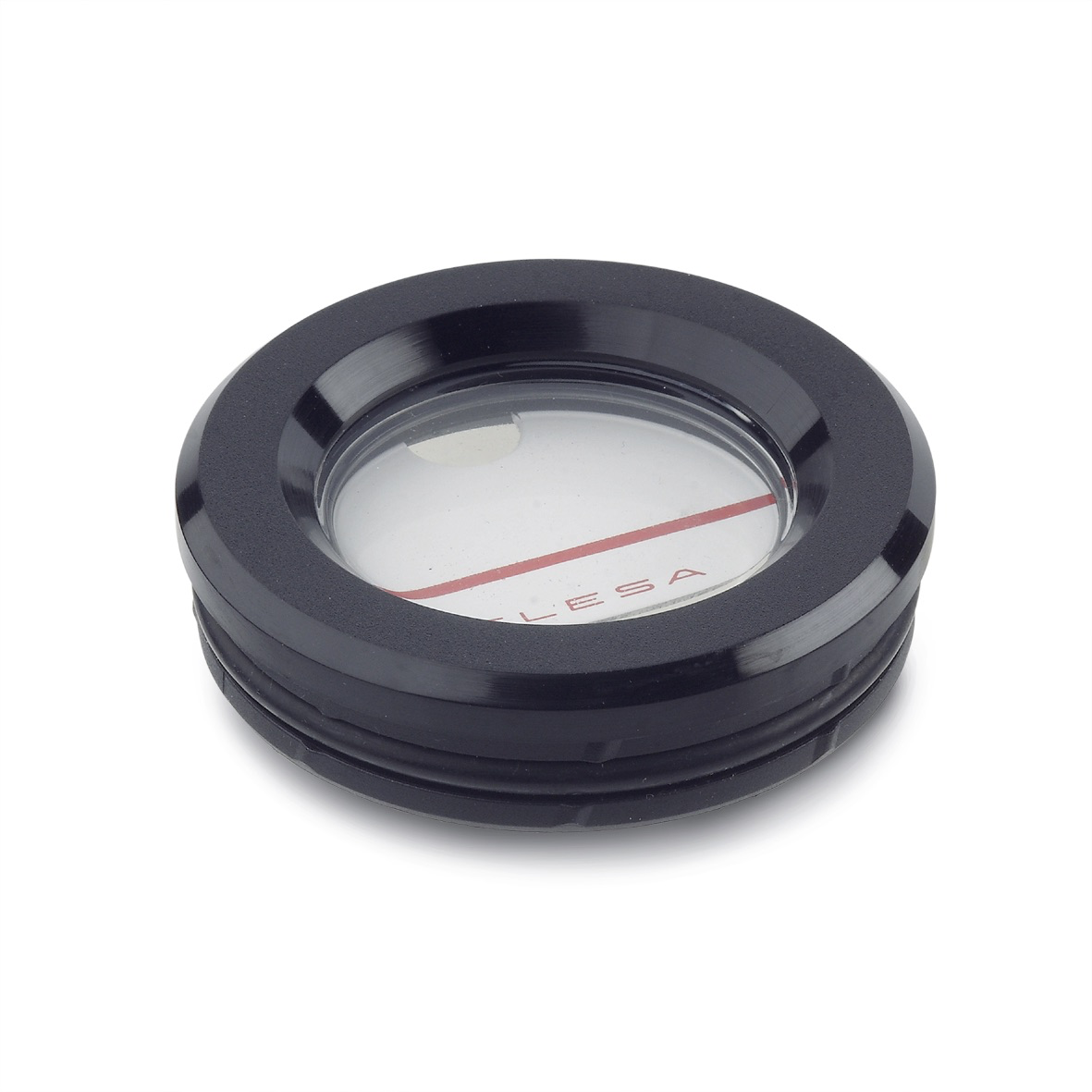

GN545.2 Oil Sight Glass, Plastic, without Thread

This oil sight glasses GN 545.2 do not require a thread.

The obliquely placed ribs and the elasticity of the plastic ensure that the oil level sight glass fits firmly into the port that even a limited over- pressurisation can be contained.

The window glass is recessed, giving better protection to the window.

Assembly Instruction

Press in the oil sight glass manually, then possibly use an intermediate layer such as wood or a hammer. Chamfer hole 1x45° and grease slightly the outside surface of the O-ring to make assembly easier.

Specification

Housing - Plastic (Polyamide PA), temperature resistant up to 100 °C, Black SW

Sight glass - Plastic, Crystal clear Polyamide (PA 6-T)

O-Ring - Rubber NBR (Perbunan®)

Reflector - Aluminum, white lacquered, with red oil level mark
