GN57.5 Retaining Magnet, Neodymium-Iron-Boron, with Internal Thread and Rubber Jacket

Choose your Part

Please select desired options to reveal part number, price and availability

Options

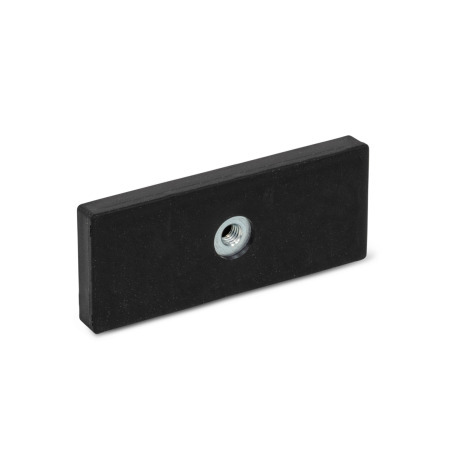

Type A - with 1 internal thread

Type B - with 2 internal threads

Product Description

GN57.5 Retaining Magnet, Neodymium-Iron-Boron, with Internal Thread and Rubber Jacket

The retaining magnets GN 57.5 with rubber jacket form a system together with the steel part that shields and strengthens the magnet, optimally concentrating the magnetic flux on the rubberised magnetic surface.

The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.

Specification

• Magnet - NdFeB, Neodymium, iron, boron, temperature resistant up to 80 °C
• Steel part - zinc plated
• Rubber jacket - Thermoplastic polyurethane (TPE), hardness ≈ 80 Shore A
  • Black SW
  • White WS

Accessory

Holding disks GN70
Adhesive disks GN70.1

On Request

Other colours
Other Shore hardnesses
