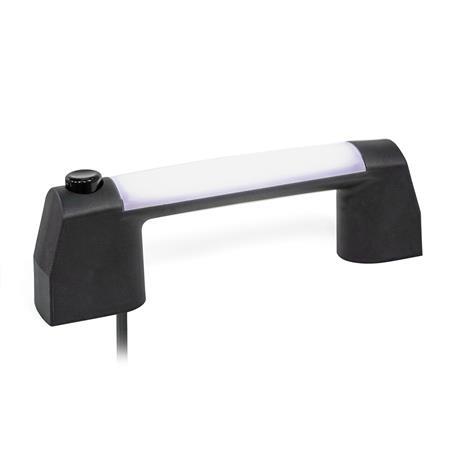

GN6284 Cabinet U Handles, Plastic, with Electrical Switching Function, LED Illuminated, Cable Connection
CloseNextPreviousGN6284 Cabinet U Handles with Electrical Switching Function
LED Illumination, with Cable
CloseNextPreviousGN6284 Cabinet U Handles with Electrical Switching Function
LED Illumination, with Cable
CloseNextPreviousGN6284 Cabinet U Handles with Electrical Switching Function
LED Illumination, with Cable
CloseNextPreviousGN6284 Cabinet U Handles with Electrical Switching Function
LED Illumination, with Cable
CloseNextPreviousGN6284 Cabinet U Handles with Electrical Switching Function
LED Illumination, with Cable
CloseNextPreviousGN6284 Cabinet U Handles with Electrical Switching Function
LED Illumination, with Cable
CloseNextPreviousGN6284 Cabinet U Handles with Electrical Switching Function
LED Illumination, with Cable
CloseNextPreviousGN6284 Cabinet U Handles with Electrical Switching Function
LED Illumination, with Cable
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type T - with button
Identification number 1 - contact block 1 NC / 1 NO
Identification number 2 - contact block 2 NC
Connection type KU - cable below
Product Description
GN6284 Cabinet U Handles, Plastic, with Electrical Switching Function, LED Illuminated, Cable Connection
Cabinet U-handles GN 6284 have a button and RGB LED lighting on the back of the handle.
Depending on the identification no., the button is fitted with a break or make contact or two break contacts and triggers an electrical control signal, such as for a machine control.

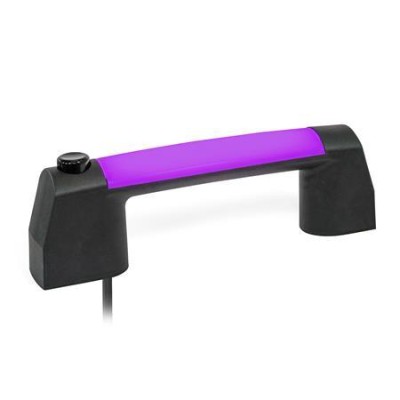

The integrated RGB LED handle lighting to serve as a status indicator for a controller, for example. Various colours can be realized by combining red, blue and green light.
Complementary cabinet U-handles without switching function are available as GN6284.1.
Specification
- Plastic - Polyamide PA, glass fibre reinforced, self extinguishing, UL-94 V0, operating temperature -20° C to +50° C, black, matt finish.
- LED light diffuser - plastic, polycarbonate PC. self extinguishing, UL-94 V0, opaque, white.
- Button - plastic, polyamide PA, black
- Threaded bushing - brass
- Cable (outer sheath) polyurethane (PUR). black
Accessory
Cables with connector coupling GN330 (8-pole, 5 or 10 meters long).
CAD Viewer
Technical Data
