GN6336.13
Star Knob, Plastic, Stainless Steel Bush, with Loss Protection
We are closed for the Bank Holiday. All orders placed over the weekend will be processed on Tuesday 27th May.
We are closed for the Bank Holiday. All orders placed over the weekend will be processed on Tuesday 27th May.
Please select desired options to reveal part number, price and availability
Options
Type A - With retaining ring only

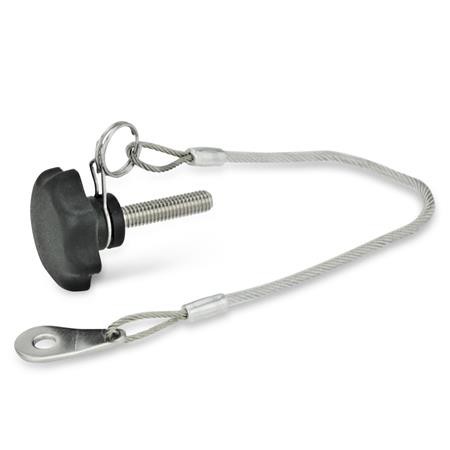

Type H - With retaining cable

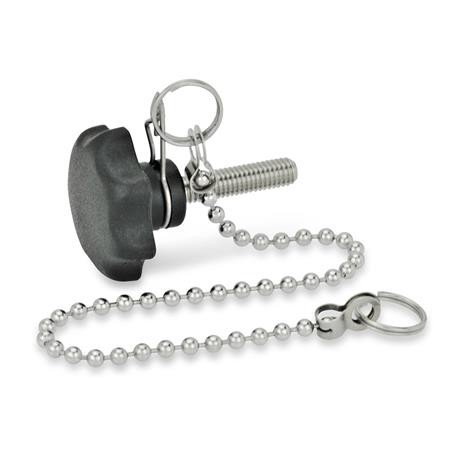

Type K - With ball chain
Product Description
GN6336.13 Star Knob, with Loss Protection.
These star knobs, GN 6336.13, can be attached to a base element with the help of a ball chain or a retaining cable, in order to hold them captive and prevent loss of the knob.
The star knobs are supplied ready assembled, either with just a retaining ring or with a ball chain or a retaining cable.
Specification
Plastic, Thermoplast (Polyamide PA), black, matt.
Threaded stud - Stainless Steel NI :
Sizes M5 - M10: 304 Cu
Size M12: AISI 303
Retaining ring GN111.6 - Stainless Steel NI, AISI 301
Ball chain GN111.5 - Stainless Steel NI, AISI 301
Retaining cable GN111.2 - Stainless Steel NI, coated with clear plastic.
On Request
Ball chains / Retaining cables with other lengths
With spiral retaining cable GN111.4
Other GN standards with loss protection
