GN6470.3 Side Support Heads, Plastic
Choose your Part
Please select desired options to reveal part number, price and availability
Options

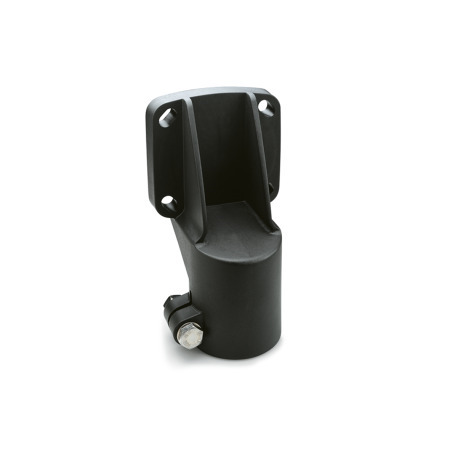

Type D - with 4 slotted holes

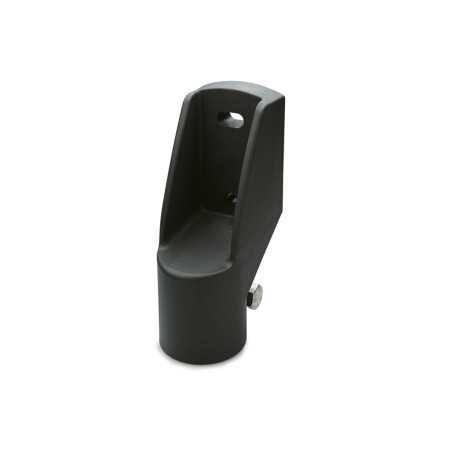

Type E - with 2 bores
Product Description
GN6470.3 Side Support Heads, Plastic
Side support heads GN 6470.3 are used in combination with boiler or threaded tubes to build transport systems or work tables.
They connect the structure, e.g. with conveyor belts or control panels, laterally or parallel to the tube axis.
Specification
- Support head - plastic, polyamide (PA). Glass fibre reinforced. Operating temperature -30 degrees C to +100 degrees C, black, matte finish.
- Clamping set - stainless steel AISI 304, Hex head screws DIN931, hex nuts DIN934, Washers DIN125.
On Request
Type D with square 45 x 45
CAD Viewer
Technical Data
