GN6471 Side Guides, Cylinder and Ball Rollers on One Side, Carrier Profile Aluminium

Choose your Part

Please select desired options to reveal part number, price and availability

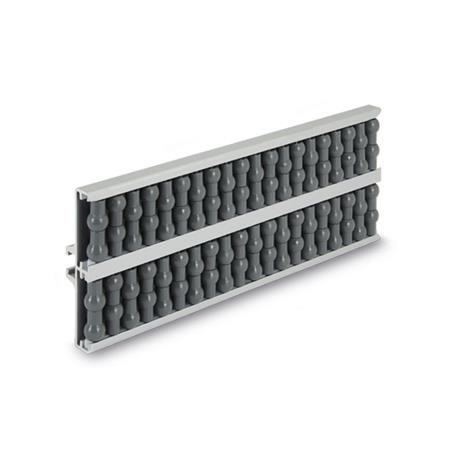

Type K - Ball shaped rollers

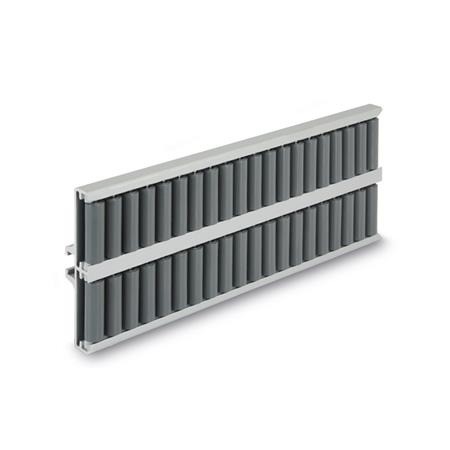

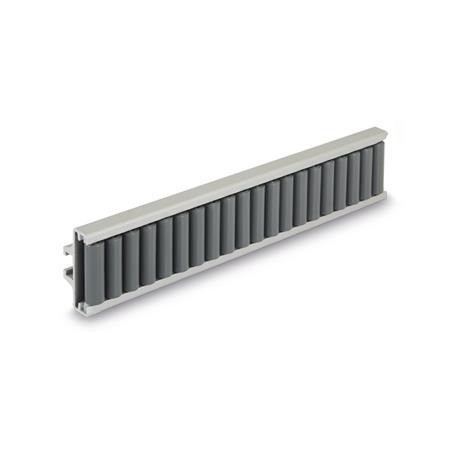

Type Z - Cylindrical rollers

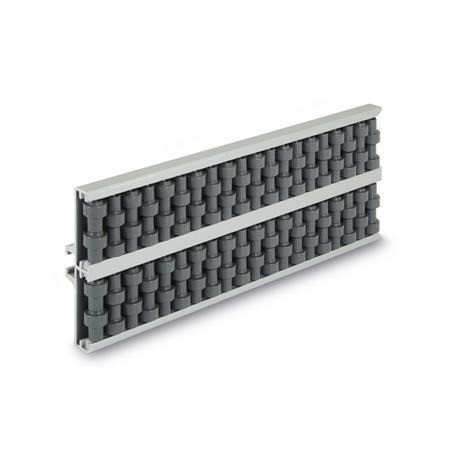

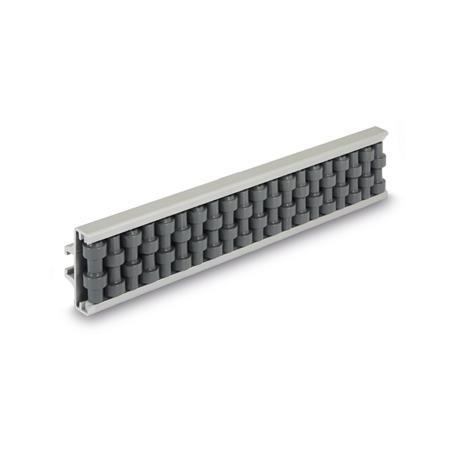

Type ZA - Cylindrically offset rollers

Identification 1 - Single row

Identification 2 - Double row

Product Description

GN6471 Side Guides, Cylinder and Ball Rollers on One Side, Carrier Profile Aluminium

Side guides GN 6471 are attached to the sides of conveyor sections and their rollers guide the conveyed goods without damage.

The type of rollers used depends on the conveyed material. Type K is used for cans and plastic boxes. For cardboard boxes, type Z can be used for an even material flow. For containers of glass, type ZA is used since it allows easy removal of any contamination due to glass breakage.

Side guides are fastened on the rear side with a T-slot. Connecting elements GN6473.2 can be used for this purpose, for example.

The side guides are delivered in packaging units of 2 pieces each. They can be shortened at increments of 120mm to suit the installation situation.

Specification

• Carrier profile - aluminium, AL, anodized, natural colour.
• Rollers - Plastic, polyethylene (PE), operating temperature -20 degrees C to +90 degrees C, grey, RAL 7035 GR
• Axis - stainless steel AISI 304
• Axial mount - Plastic, polyacetal (POM), operating temperature -20 degrees C to +90 degrees C, white
