GN6472 Side Guides, Cylinder & Ball Rollers on Two Sides, Carrier Profile Aluminium

Choose your Part

Please select desired options to reveal part number, price and availability

Type K - Ball shaped rollers

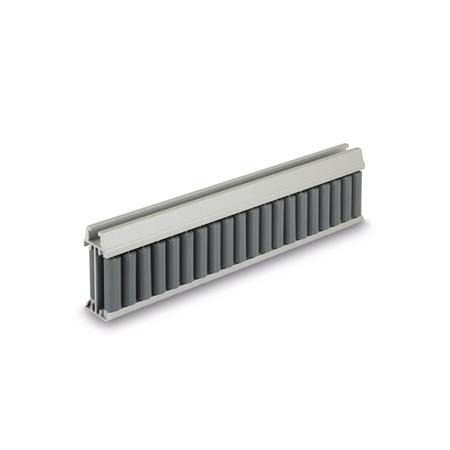

Type Z - Cylindrical rollers

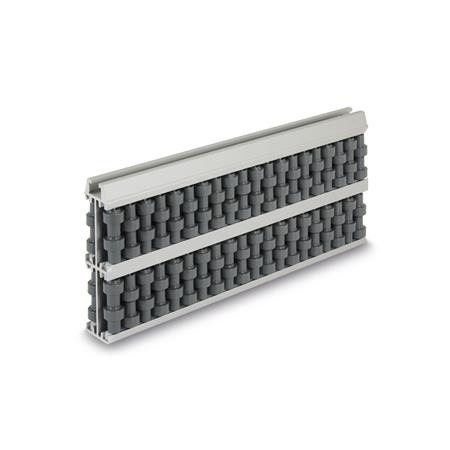

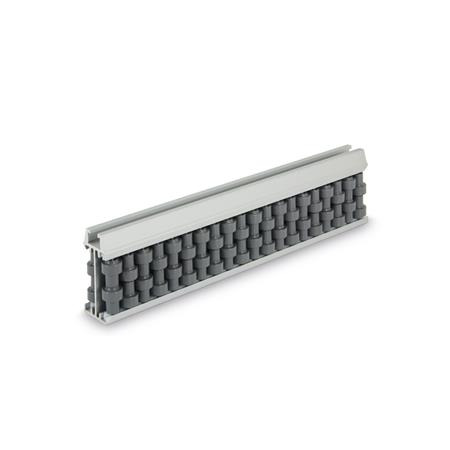

Type ZA - Cylindrically offset rollers

Identification No. 1 - Single row

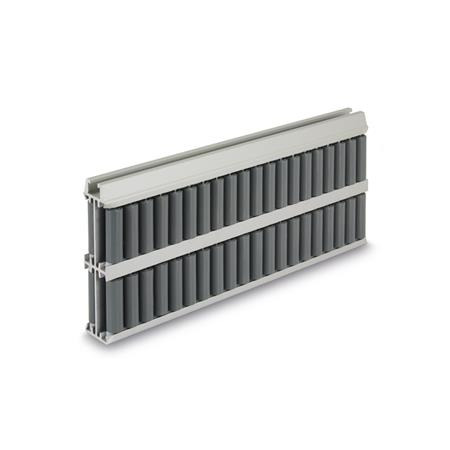

Identification No. 2 - double row

Product Description

GN6472 Side Guides, Cylinder & Ball Rollers on Two Sides, Carrier Profile Aluminium

Side guides GN 6472 are installed in the middle of conveyor sections and their rollers guide the conveyed goods without damage.

The type of rollers used depends on the conveyed material. Type K is used for cans and plastic boxes. For cardboard boxes, type Z can be used for an even material flow. For containers of glass, type ZA is used since it allows easy removal of any contamination due to glass breakage.

Side guides are fastened on the top side via the T-slot. Connecting element GN 6473.2 can be used for this purpose, for example.

The side guides are delivered in packaging units of 2 pieces each. They can be shortened at increments of 120 mm in consideration of the installation situation.

Specification

• Carrier profile - Aluminium, anodized, natural colour AL
• Rollers - Plastic, polyethylene (PE), operating temperature -20 degrees C to +90 degrees C, grey, RAL 7035
• Axis - Stainless steel AISI 304
• Axial mount - plastic, polyacetal (POM), operating temperature -20 degrees C to +90 degrees C, white

Accessory

Connecting strips GN6471.3

Connecting elements GN6473.2
