GN665 Arch Handle, Aluminium
Choose your Part
Please select desired options to reveal part number, price and availability
Product Description
GN665 Arch Handle, Aluminium
These GN 665 arch handles have an ever popular, elegant design & are elliptical in cross section. They are strong and rugged, and are ideal for use on machinery and for applications such as pull/push doors and for cupboards, cabinets, hatches and drawers.
Specification
- Arch handle - Aluminium powder coated.

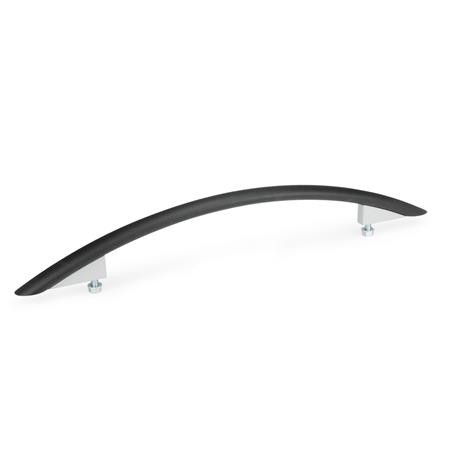

- Black, RAL 9005, textured finish, SW.
- Silver, RAL 9006, textured finish SR.
- End pieces - Zinc die casting, plastic coated, silver, RAL 9006, textured finish
- Grub screws - Steel, tensile strength class 5.8 (500 N/mm2) zinc plated, blue passivated.
- Hexagon nuts ISO 4032-M8 - Steel, zinc plated.
- Washers DIN 125 - Steel, zinc plated.
Application Examples

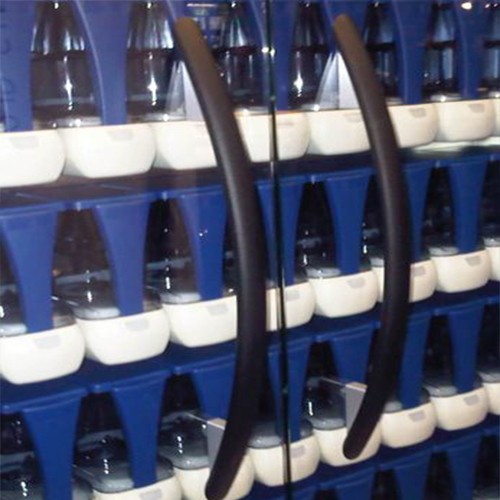

In the example below, GN 665 arch handles have been used on the doors of a dispenser.
CAD Viewer
Technical Data
