GN666.4 Tubular Arch Handle, Aluminium or Stainless Steel
Choose your Part
Please select desired options to reveal part number, price and availability
Product Description
GN666.4 Tubular Arch Handle in Aluminium or Stainless Steel
The curved style of the GN 666.4 tubular arch handles highlights modern machine design. The production method used allows special solutions to be realised. For example, handles with other radii of curvature or leg heights.
Specification
- Handle tube - Ø 30 x 1,5 (Aluminium / Stainless Steel)
- Handle legs - Aluminium, powder coated.
- Cover caps - Plastic (Polyamide PA), glass fibre reinforced, temperature resistant up to 100 °C

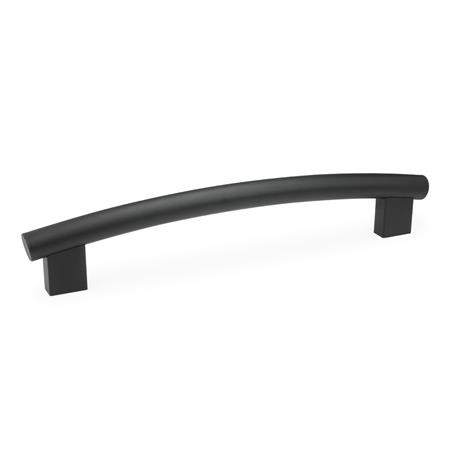

- Tube / Handle legs - Aluminium, powder coated, black, RAL 9005, textured finish SW. Covers, black, matt.
- Tube aluminium - Anodized, natural colour, EL. Handle legs black, RAL 9005, textured finish. Covers, black, matt.

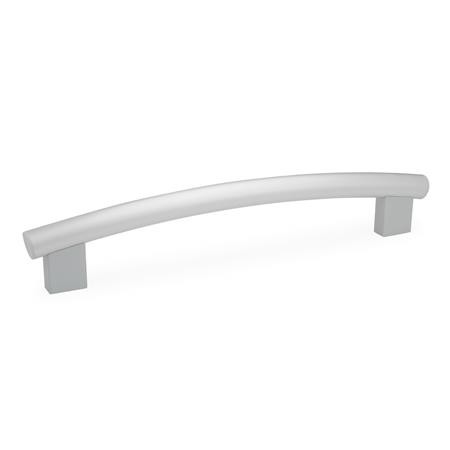

- Tube aluminium - Anodized, natural colour ES. Handle legs silver, RAL 9006, textured finish. Covers, light grey, matt.

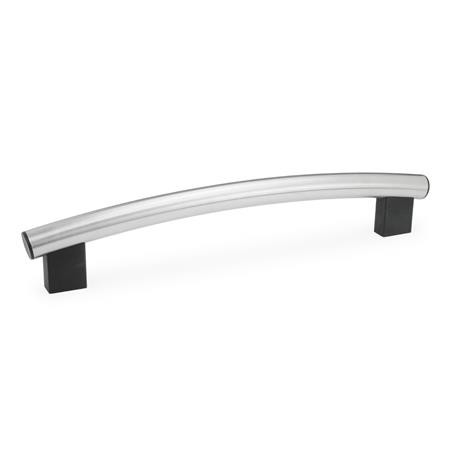

- Tube Stainless Steel AISI 304, ground, matt shiny finish NG. Handle legs black RAL 9005, textured finish. Covers, black, matt.
Application Example

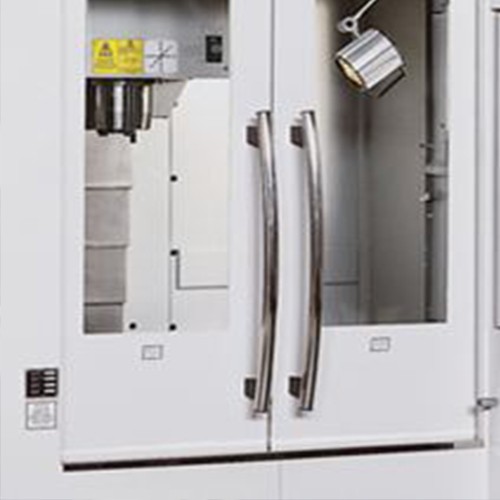

In the example below, tubular arch handles GN666.4 Have been used on the doors of this machining centre.
