Please select desired options to reveal part number, price and availability
Options
Type A - flat, without stop edge

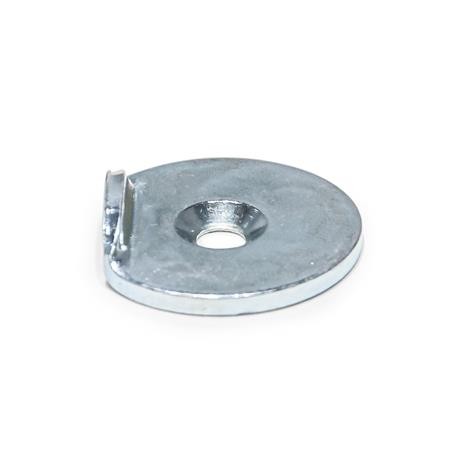

Type B - flat, with stop edge
Product Description
GN70 Holding Disc for Retaining Magnets, Steel
These steel holding discs GN 70 are used as companion parts for retaining magnets, e.g. if a magnet is to be used in connection with non-magnetic materials.
Type B prevents the magnet from sliding since the magnetive forces are generally larger than the achievable lateral forces arising due to the friction partners present.
They can be fixed with countersunk screws (e.g. DIN7991), but also with any commercial wood or sheet metal countersunk screws.
Also available in stainless steel.
Specification
Steel ST, zinc plated
CAD Viewer
Technical Data
