GN711.3
Indicator Arrow, Aluminum, For Rulers
We are closed for the bank holiday, any order placed over the weekend / Monday will be processed on Tuesday on our return. Enjoy the sunshine!
BERGER TOOLS LTD
BERGER TOOLS LTD
We are closed for the bank holiday, any order placed over the weekend / Monday will be processed on Tuesday on our return. Enjoy the sunshine!
Please select desired options to reveal part number, price and availability
Options
Identification Number 1 - with mounting holes 3.3 diameter.
Type W - Figures horizontally arranged (figures sequences L, M, R).
Type S - Figures vertically arranged (figures sequences U, M, O).
Product Description

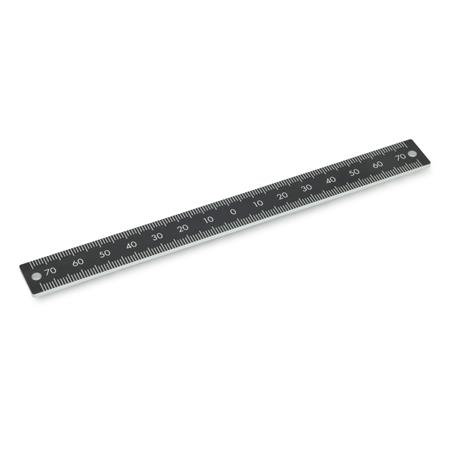

GN711.2 Aluminium Ruler with Two Mounting Holes
These GN 711.2 rulers allow the position of linear actuator connectors to be easily read. The black background creates a high contrast to the natural-coloured numbers and scales and prevents glare.
The orientation of the dimensioning of the fastening holes depends on the sequence of the numbers and is shown in the drawing.
Specification
On Request
Self-adhesive version (Minimum order quantity)
