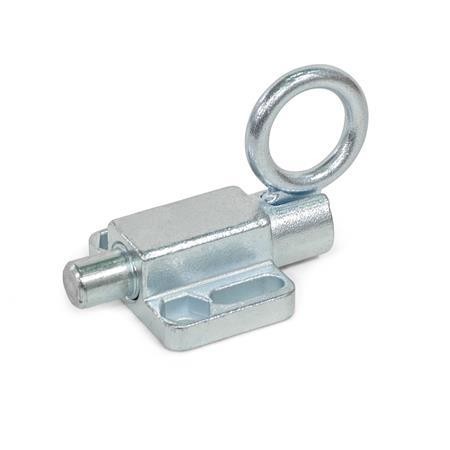

GN722.6 Indexing Plunger, with Flange for Surface Mounting, With Rest Position, Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type C - with pull ring, with rest position

Product Description

GN722.6 Indexing Plunger, with Flange for Surface Mounting, Parallel to the Plunger Pin, Steel

With indexing plungers GN 722.6, the plunger pin is actuated via the pull ring. This is done either manually, with a cable or by means of an extended pull rod with hook. The ZB and SW versions are designed for applications in steel construction.

The type with rest position is used when the plunger pin should temporarily not protrude. For this purpose, the pull ring is turned sideways after the locking pin has been retracted. The ring is held in this position by the catch groove at the top of the guide.

The dimensional tolerances between the pin and the guide have been chosen to ensure functional reliability even in roughly dimensioned applications or in the event of soiling.

For fastening, slotted or hexagonal mounting holes allow the use of socket cap screws DIN912 and hex screws or nuts according to DIN931 or DIN934.

Specification

• Guide - steel precision casting

  • Zinc plated, blue passivated ZB
  • Zinc plated, powder coated, black RAL 9005, textured finish SW
• Pull ring - steel precision casting, zinc platede, blue passivated
• Plunger Pin - steel, zinc plated, blue passivated
• Pressure Spring - Stainless Steel AISI 316Ti
