Please select desired options to reveal part number, price and availability
Options
Identification no. 1 - without housing seal
Identification no. 2 - with housing seal
Product Description

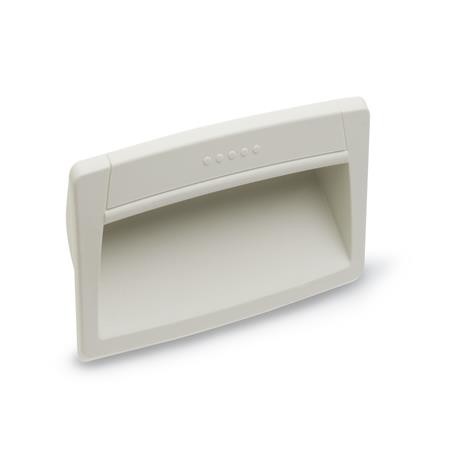

GN731 Gripping Trays, Clip-in Type
The design of the gripping trays GN 731 matches the product family of Ergostyle®.
Gripping trays with housing seal (identification no. 2) prevent the penetration of any dirt or liquids into the housing interior.
For mounting there are no fixing screws required, for easy installation.
The values of the load capacities F1 and F2 were tested with wall thickness s = 1.5 mm.
Specification
On Request
CAD Viewer
Technical Data
