GN739 Gripping Tray, Screw-in Type, Reinforced Plastic

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Colour SG- Black, grey

Colour WS - White

Product Description

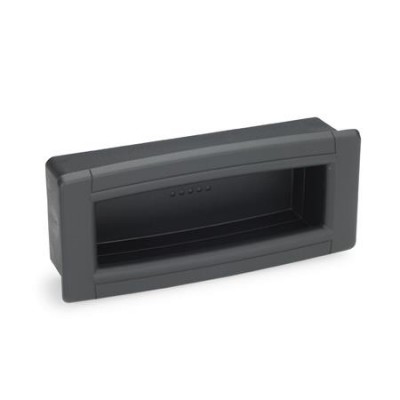

GN739 Screw-in Type Gripping Tray (Reinforced Plastic)

The design of the GN 739 gripping trays matches the product family of Ergostyle®. These gripping trays are means for opening and closing sliding doors.

The installation opening for the gripping tray must be created according to the dimensions given in the table.

For mounting, the front body is first inserted into the opening of the housing and then the rear body is pushed up from behind to the housing wall. Finally, both parts are screwed together.

Specification

• Plastic - Technopolymer (Polyamide PA), glass fibre reinforced, temperature resistant up to 100°C
• Colour (matt):
  • Black-grey, RAL 7021 SG
  • White RAL 9002 WS
• Self-tapping screws ISO 7049 - Steel, zinc plated ST 3,5-20
