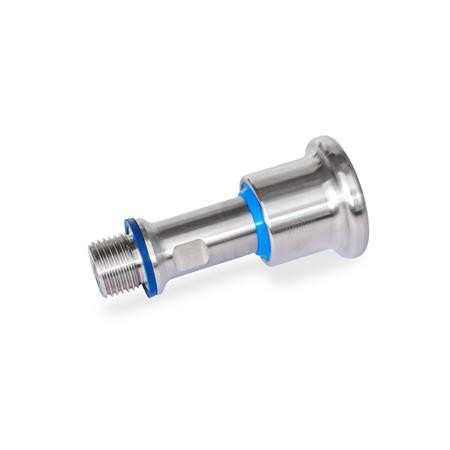

GN8170 Indexing Plunger, Stainless Steel, Front Hygienic Design

CloseNextPrevious



CloseNextPrevious

GN8170: Indexing Plunger
Type: B - Identification: FH



CloseNextPrevious

GN8170: Indexing Plunger
Type: C - Identification: FH



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Identification FH - Knob side Hygienic Design (front hygiene)

Type - without rest position

Type C - with rest position

CAD Viewer Technical Data

Product Description

GN8170 Indexing Plunger, Stainless Steel, Hygienic Design

Stainless steel indexing plungers GN 8170 are certified according to DGUV Test guidelines and meet hygiene requirements on the knob side (front hygiene).

Wipers between the knob and the guide as well as the sealing ring between the guide and the housing keep the locking mechanism on the knob side leak-tight. At the same time, the high surface quality (Ra < 0,8 µm) and dead-space-free mounting prevent dirt from adhering and facilitate cleaning.

Indexing plungers with a rest position (Type C) are used for such applications where the plunger has to stay in its retracted position. In that case, the knob is retracted and afterwards turned by 90°. A notch keeps the plunger in this position.

Mounting holes and through-holes in the housing must be at a right angle, free of burrs and without a chamfer. This ensures that the sealing rings will function properly.

Specification

Stainless Steel - AISI 316 (A4), Plunger pin case hardened

Spring - Stainless Steel AISI 316Ti

Seals, blue, FDA compliant - temperature resistant -25 °C to +110 °C

Sealing ring H-NBR, hardness 85 ±5 Shore A

Wiper TPU, hardness 95 ±5 Shore A

All moving parts lubricated with FDA-compliant special grease
