GN852.3 Latch Type Toggle Clamps with Safety Hook, Steel, Heavy Duty

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type T6 - With mounting holes, with U-bolt latch, with catch

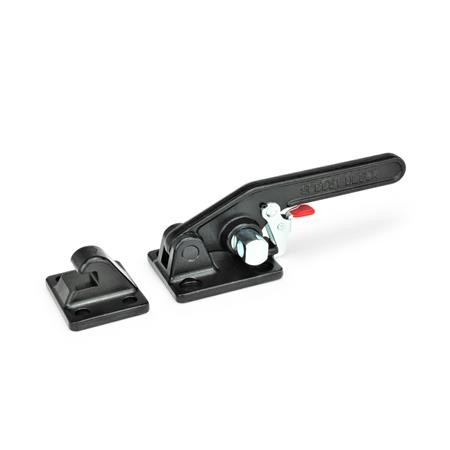

Type T - With mounting holes, without U-bolt latch, with catch

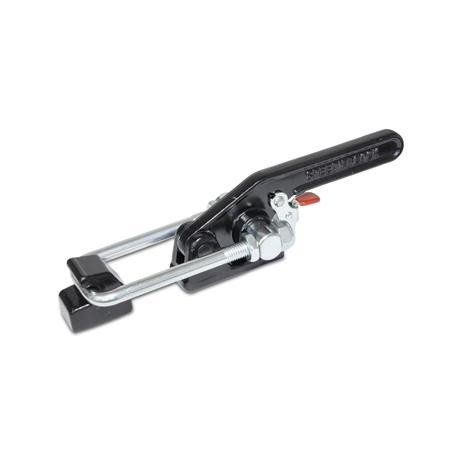

Type T6S - For welding, with U-bolt latch, with catch

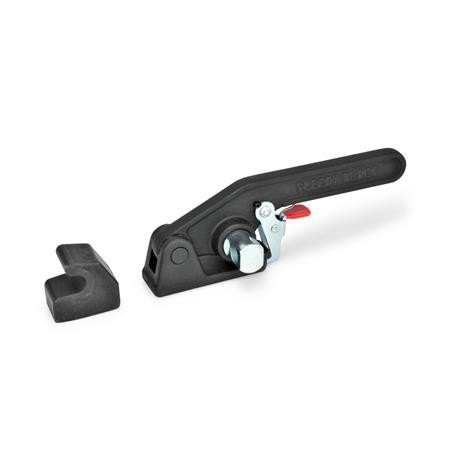

Type TS - For welding, without U-bolt latch, with catch

Product Description

GN852.3 Latch Type Toggle Clamps with Safety Hook, Steel, Heavy Duty

These heavy duty latch type toggle clamps, GN 852.3, are compact in design and have a high holding capacity.

When closing the clamp a safety hook positively locks onto the body. This prevents the inadvertent or accidental release from the clamping position, for example, due to vibration. When opening the safety hook, it is unlocked using a one-hand operation.

The U-bolt latch can be adjusted within its range.

In addition to the standard lengths for the U bolt latch shown, more lengths may be achieved by using GN951.1 square U-bolts.

Also available in a stainless steel variant GN852.3.

Specification

Body / catch / clamping lever - Steel ST C22, forged, black lacquered (Type T6 / T), blackened (Type T6S / TS).

U-bolt latch / bearing pin - Steel ST 37, zinc plated, blue passivated.

All moving parts lubricated with special grease.
