GN900.3 Connecting Set X-Z Axis for GN900, Aluminium

CloseNextPrevious



CloseNextPrevious

GN900.3: Connecting Set X-Z Axis
Type: P



CloseNextPrevious

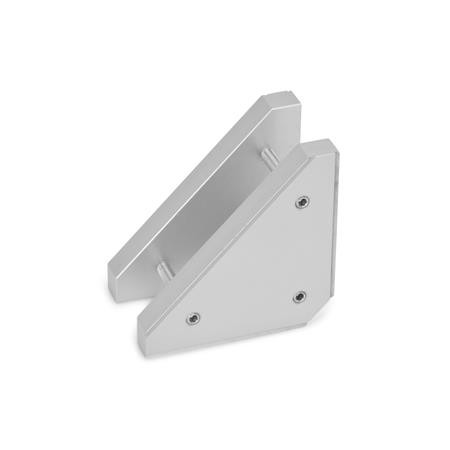

GN900.3: Connecting Set X-Z Axis
Type: S



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type P - Mounting the Z-axis via connecting plate and additional plate

Type S - Direct mounting of the Z-axis via connecting plate

CAD Viewer Technical Data

Product Description

GN900.3 Connecting Set X-Z Axis for GN 900, Aluminium

With connecting sets GN 900.3 two adjustable slide units GN900  can be combined to produce an X-Z axis configuration.

The combination is created by using two connection plates which eliminate any type of fixing holes in the slides. At the same time the adjustable slide unit with the Z-axis can, to a limited extent (vertically to the Z-axis), still be adjusted.

In the case of a slide configuration of the Z-axis parallel to the reference axis (type P) an adaptor plate (complete with a fastening set, small fixing plates and socket head cap screws) is required which is included in the set.

The small fixing plates serves for the 90° alignment of the Z-axis and fine adjustment of the adaptor plate (Type P).

All parts required to make up a set are included.

Specification

Aluminium AL, anodized, natural colour.

Grub screws DIN913 - Steel ST, zinc plated.

Socket head cap screw DIN912 - Stainless Steel NI.
