Product Description

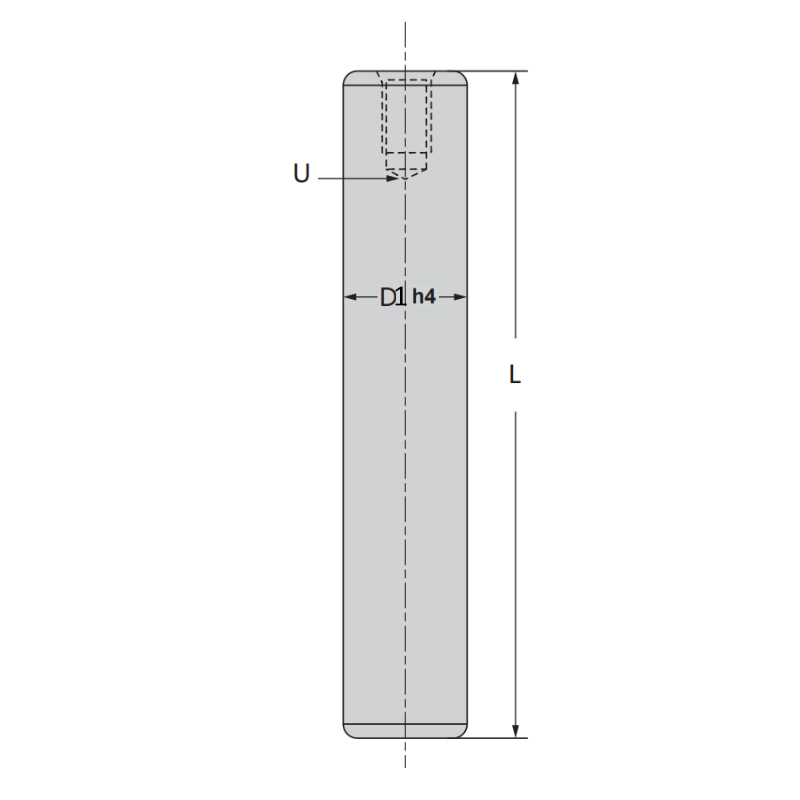

CIAF (IEM-PP) Press Fit Guide Pillar
These press fit guide pillars are designed to run in both a plain and ball bearing system. They are manufactured from high quality hardened steel and finish ground for a high precision finish. The diameters that are used in ball bearing applications are drilled and tapped on the working end for the mounting of the ball cage washer assembly. This unique mounting method permits the ball cage, except when under preload, to freely rotate 360 degrees around the guide pillar, thus eliminating scoring or tracking of the guide pillar surface.
Specification
Hardened Steel. Clamps and screws included
Other sizes available on request
CAD Viewer
Technical Data
