GN5336 Star Knob, Aluminium, Threaded or Plain Bore



CloseNextPrevious



CloseNextPrevious

GN5336: Star Knob - Type: C
Finish: MT - Matte Finish (Ground)



CloseNextPrevious

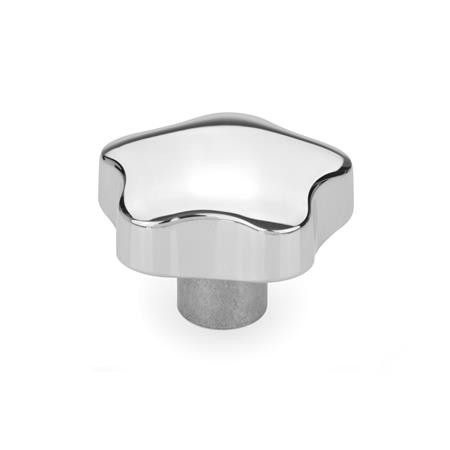

GN5336: Star Knob - Type: C
Finish: PL - Polished



CloseNextPrevious

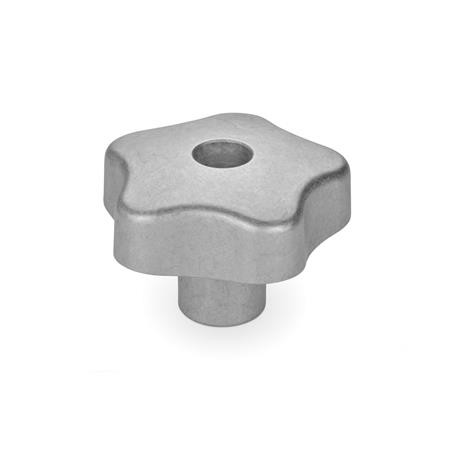

GN5336: Star Knob - Type: D
Finish: MT - Matte Finish (Ground)



CloseNextPrevious

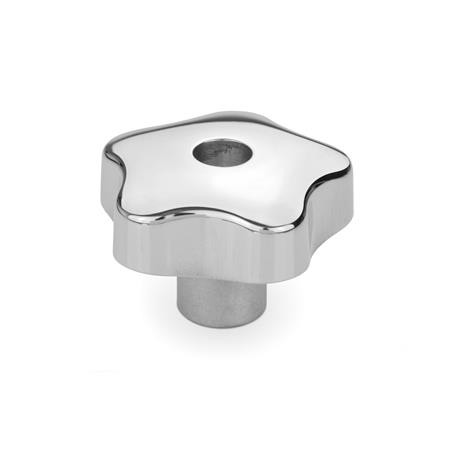

GN5336: Star Knob - Type: D
Finish: PL - Polished



CloseNextPrevious

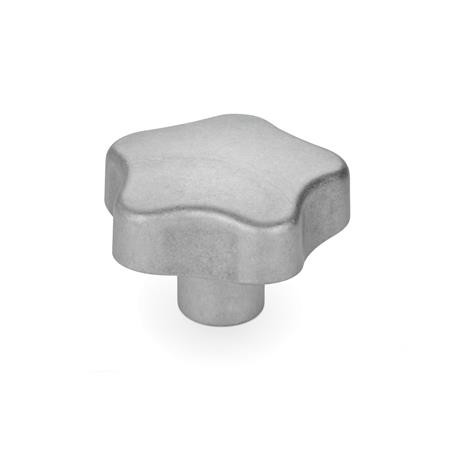

GN5336: Star Knob - Type: E
Finish: MT - Matte Finish (Ground)



CloseNextPrevious

GN5336: Star Knob - Type: E
Finish: PL - Polished



CAD Viewer Technical Data

Series Selector

Options

Type C - with plain blind bore, Tol. H7

Type D - with threaded through bore

Type E - with threaded blind bore.

CAD Viewer Technical Data

Product Description

GN5336 Star Knob, Aluminium, Threaded or Plain Bore

These star knobs are forged, resulting in a close grain structure which produces a high tensile strength and a smooth surface. They provide a firm grip to easily achieve high torques whilst being comfortable to use.

Any casting flash is invisible due to the advanced production techniques.

Specification

Aluminium AL

Matt surface (ground) MT, flash mark not visible.

Polished PL.
