GN321.4 Disc Safety Handwheel, Aluminium, Friction Bearing

CloseNextPrevious



CloseNextPrevious

GN321.4: Disc Safety Handwheel
Type: D - With Revolving Steel Handle



CloseNextPrevious

GN321.4: Disc Safety Handwheel
Type: A - Without Handle



CAD Viewer Technical Data

Series Selector

Options

Type A - Without Handle

Type D - With Revolving Steel Handle GN598

Coding ZI - Engaged By Pulling

Coding DR - Engaged By Pushing

CAD Viewer Technical Data

Product Description

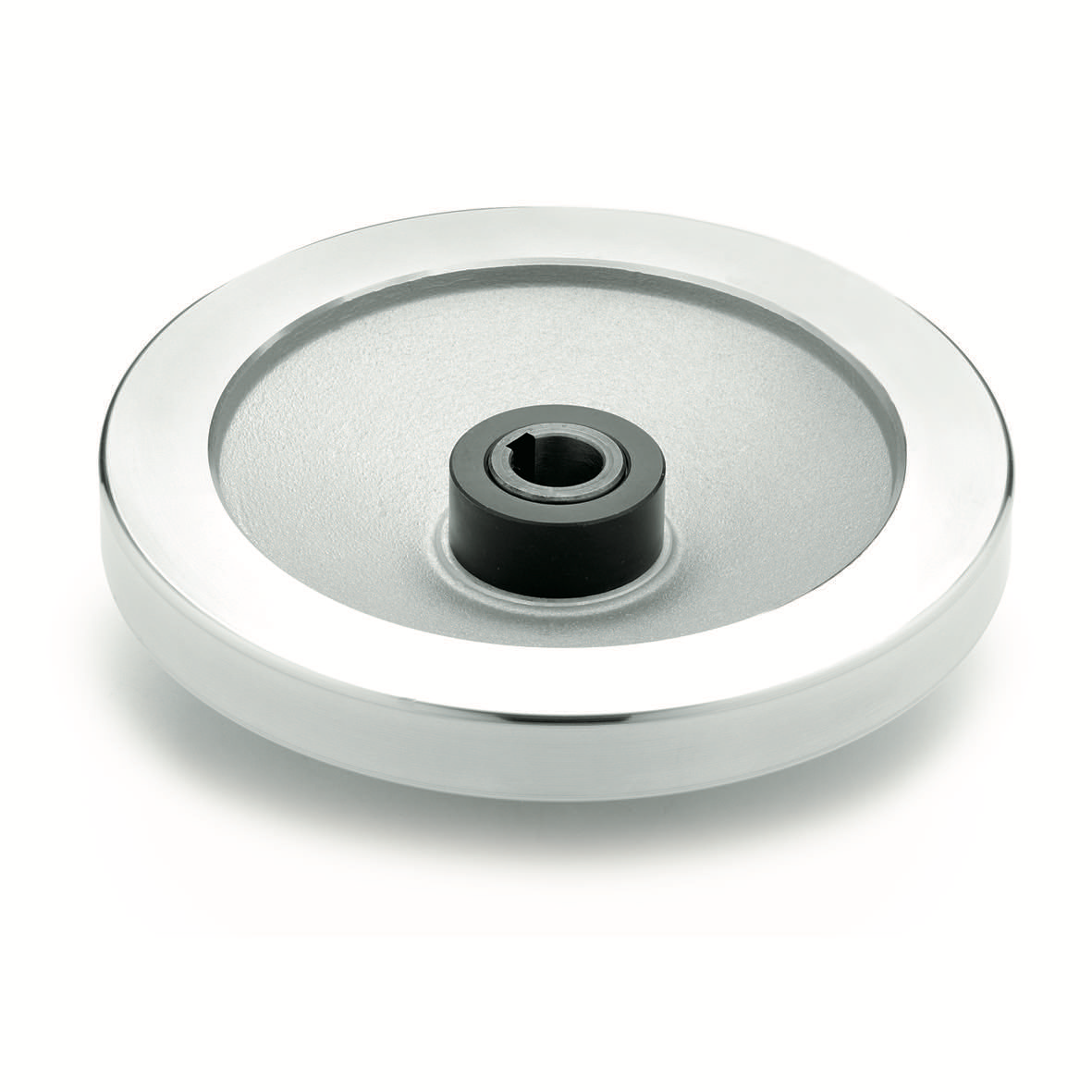

GN321.4 Disc Safety Handwheel, Aluminium, Friction Bearing

These disc handwheels are engaged into their active position by either pushing (option DR), or pulling (option ZI), preventing accidental adjustment. They can be supplied with or without revolving handles. The use of coupling attachments in handwheels other than those specified (GN000.4) is also possible.

Specification

Aluminium AL

Hub - Machined

Rim - Turned, high-polished, concentric and square to bore < 0,4

Body - Unmachined, matt shot-blasted.

Revolving handles GN598 - Steel ST, plastic coated black, matt.

Accessory

Coupling Attachments GN000.4

Related Series
