Standard Parts for Clamping & Operating & Machine Fixtures > Handwheels & Cranked Handles > Safety Handwheels
< Previous Product Next Product >

GN321.5 Safety Handwheel with Needle Bearing

images/300/GN321.5-Safety-handwheels-with-needle-bearing-sketch_H.png

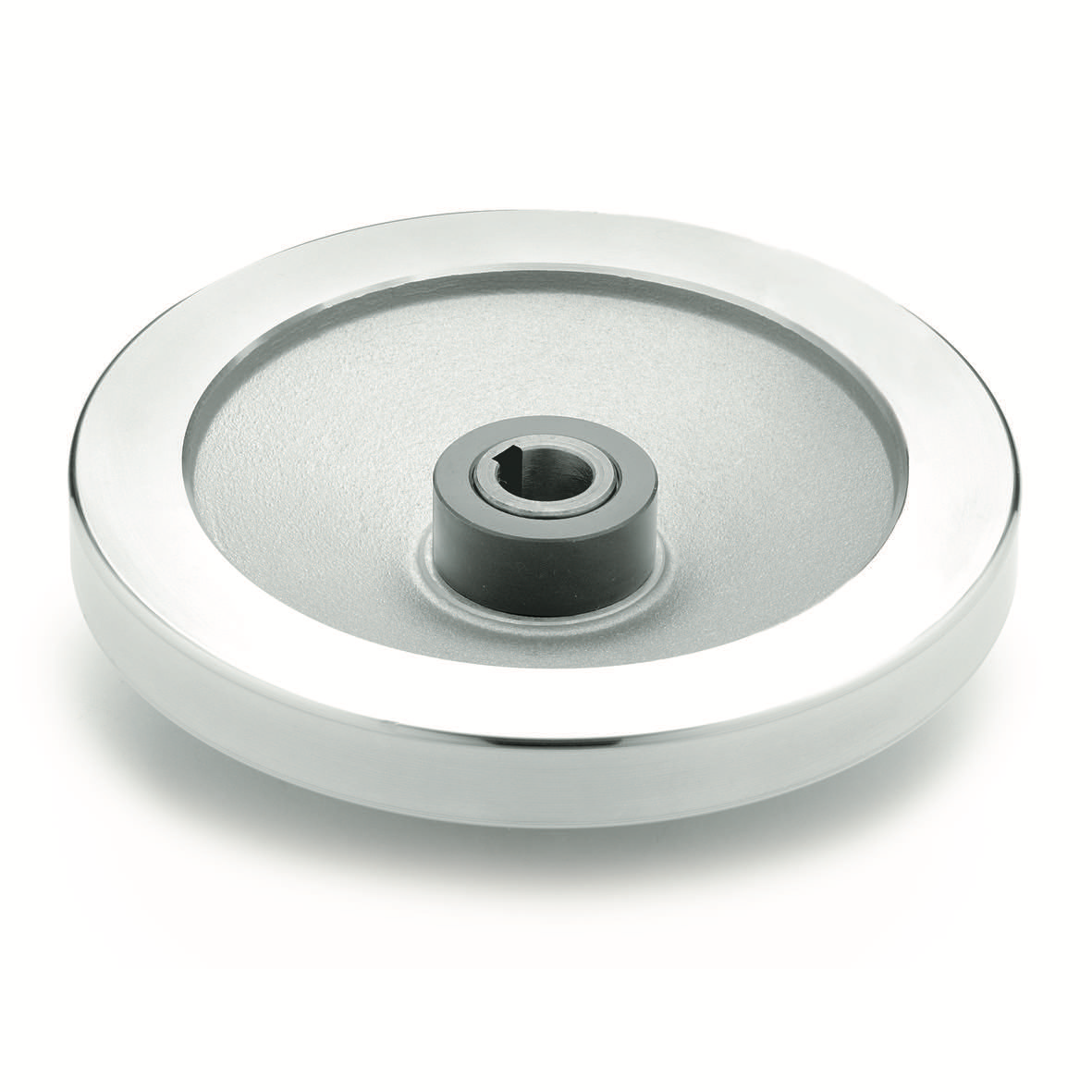

Type A - without handle

Type D - with revolving steel handle GN598

Mode ZI - engage by pulling.

Mode DR - engage by pushing.

Select Values to Buy:

Tech Spec:



GN321.5 Safety Handwheel with Needle Bearing

These top quality safety handwheels feature the ultimate in health and safety at work standards. They can be supplied with or without a revolving handle and they are very cost effective. The use of coupling attachments in handwheels other than specified is also possible.

Specification

Aluminium,

Hub - machined

Body - unmachined, matt, shot-blasted

Rim - turned, concentric and square to bore < 0,4 and highly polished

Coupling Attachment GN000.5

Revolving handles GN598 - Steel, plastic coated, black, matt.

RoHS compliant



Select / Deselect Visible Columns
PartCoded1d2TypeModed3d4l1l2l3l4rwØ HandleCoupling GN000.5 sizeMaterialMass

GN321.5-125-K12-A-ZI125K12AZI291742181267.5544231AL0.423
GN321.5-125-K12-A-DR125K12ADR291742181267.5544231AL0.423
GN321.5-125-K12-D-ZI125K12DZI291742181267.5544231AL0.608
GN321.5-125-K12-D-DR125K12DDR291742181267.5544231AL0.608
GN321.5-140-K12-A-ZI140K12AZI291742191267.5614231AL0.512
GN321.5-140-K12-A-DR140K12ADR291742191267.5614231AL0.512
GN321.5-140-K12-D-ZI140K12DZI291742191267.5614231AL0.697
GN321.5-140-K12-D-DR140K12DDR291742191267.5614231AL0.697
GN321.5-140-K14-A-ZI140K14AZI332148191467.5614232AL0.592
GN321.5-140-K14-A-DR140K14ADR332148191467.5614232AL0.592
GN321.5-140-K14-D-ZI140K14DZI332148191467.5614232AL0.777
GN321.5-140-K14-D-DR140K14DDR332148191467.5614232AL0.777
GN321.5-160-K14-A-ZI160K14AZI332148201482.5714262AL0.6
GN321.5-160-K14-A-DR160K14ADR332148201482.5714262AL0.715
GN321.5-160-K14-D-ZI160K14DZI332148201482.5714262AL1.008
GN321.5-160-K14-D-DR160K14DDR332148201482.5714262AL1.008
GN321.5-200-K18-A-ZI200K18AZI392650241382.5894263AL0.8
GN321.5-200-K18-A-DR200K18ADR392650241382.5894263AL1.06
GN321.5-200-K18-D-ZI200K18DZI392650241382.5894263AL1.42
GN321.5-200-K18-D-DR200K18DDR392650241382.5894263AL1.2
GN321.5-250-K22-A-ZI250K22AZI463054281392.51134284AL1.9
GN321.5-250-K22-A-DR250K22ADR463054281392.51134284AL1.84
GN321.5-250-K22-D-ZI250K22DZI463054281392.51134284AL2.133
GN321.5-250-K22-D-DR250K22DDR463054281392.51134284AL2.2
