GN321.6 Safety Handwheel with Needle Bearing

CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

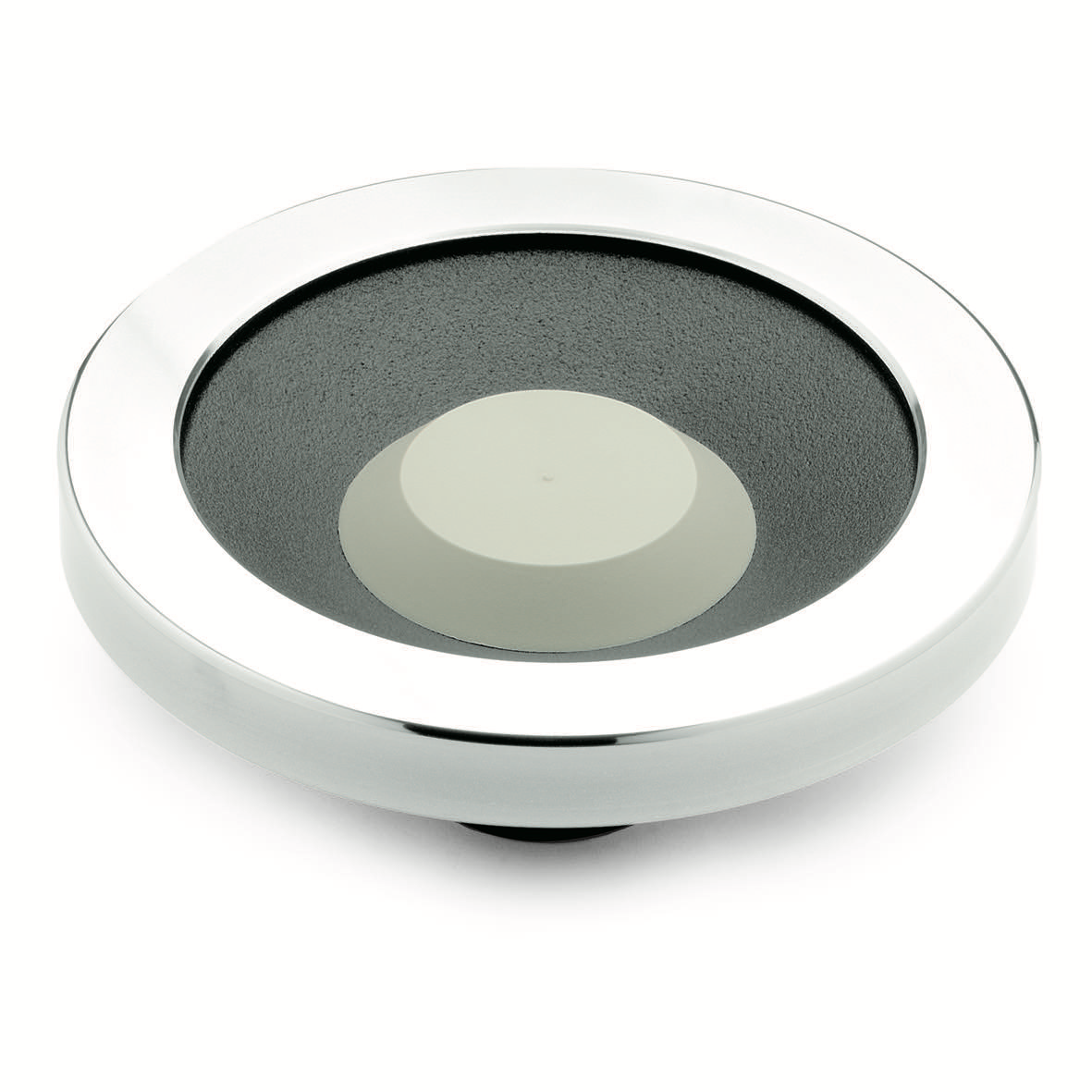

Type A - without handle.

Type D - with revolving handle GN598

CAD Viewer Technical Data

Product description

GN321.6 Safety Handwheel with Needle Bearing

The polished wheel rim, the light grey hub cap and the black plastic coated wheel body give this safety handwheel a very attractive appearance. The hub cap protects the bearing from the ingress of dust and at the same time acts as a shroud for the mounting components.

The wheel hub is fitted with an inside groove to retain the hub cap on its segmented edge.

The hub cap is pushed into position by hand and it can be removed by levering it away at the relieved point with a screw driver.

The needle bearings are greased on assembly which should be ample for permanent lubrication.

Specification

Handwheel body - Aluminium, plastic coated, matt black, textured finish.

Rim - Aluminium, turned and polished.

Coupling attachments - Steel, hardened, honed glide surfaces.

Hub cap - Plastic, light grey.

Revolving handles GN598 - Steel, plastic coated, black, matt
