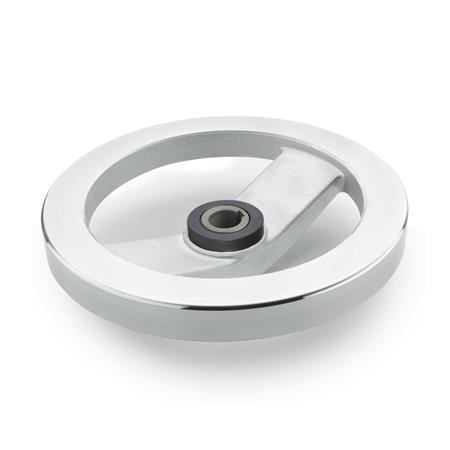

Type A - without handle.

Type D - with revolving steel handle GN598

Mode ZI - engage by pulling.

Mode DR - engage by pushing

CAD Viewer Technical Data

Product description

GN322.5 Spoked Safety Handwheel, Needle Bearing

These spoked handwheels are engaged into their active position by either pushing (mode DR), or pulling (mode ZI), preventing accidental adjustment. They can be supplied with or without revolving handles. The highly polished rim and shot blasted body requires no painting or other treatments for most applications.

The use of coupling attachments in handwheels other than those specified is also possible.

Specification

Aluminium.

Hub - machined.

Rim - turned, highly polished, concentric and square to bore < 0,4

Body - unmachined, matt, shot-blasted

Revolving handles GN598, steel, plastic coated, black, matt.

Coupling Attachments GN000.5
