GN322 Spoked Handwheel, Aluminium, with Recessed Grips
CloseNextPreviousGN322: Disc Safety Handwheel - Bore Code: B
Type: R - With Revolving Handle

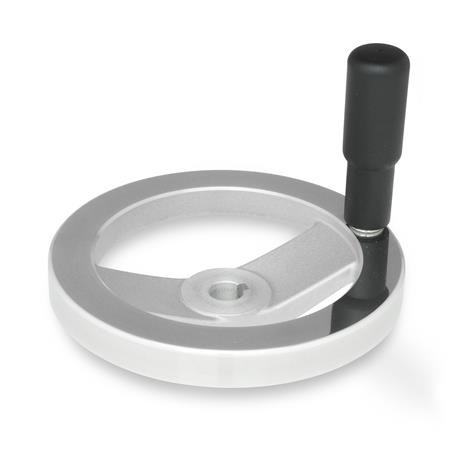

CloseNextPreviousGN322: Disc Safety Handwheel - Bore Code: K
Type: R - With Revolving Handle
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Bore Code B - Without keyway + Bore

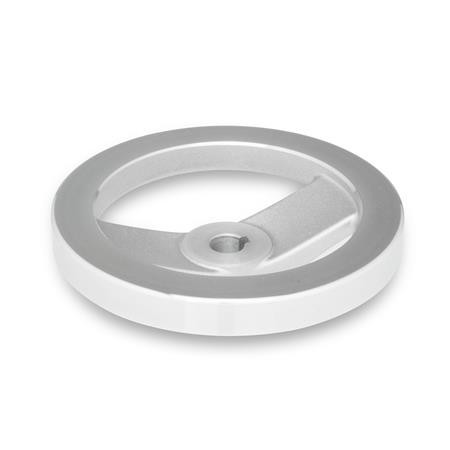

Bore Code K - With keyway + Bore
Type A - Without handle
Type R - With revolving handle GN798
Product Description

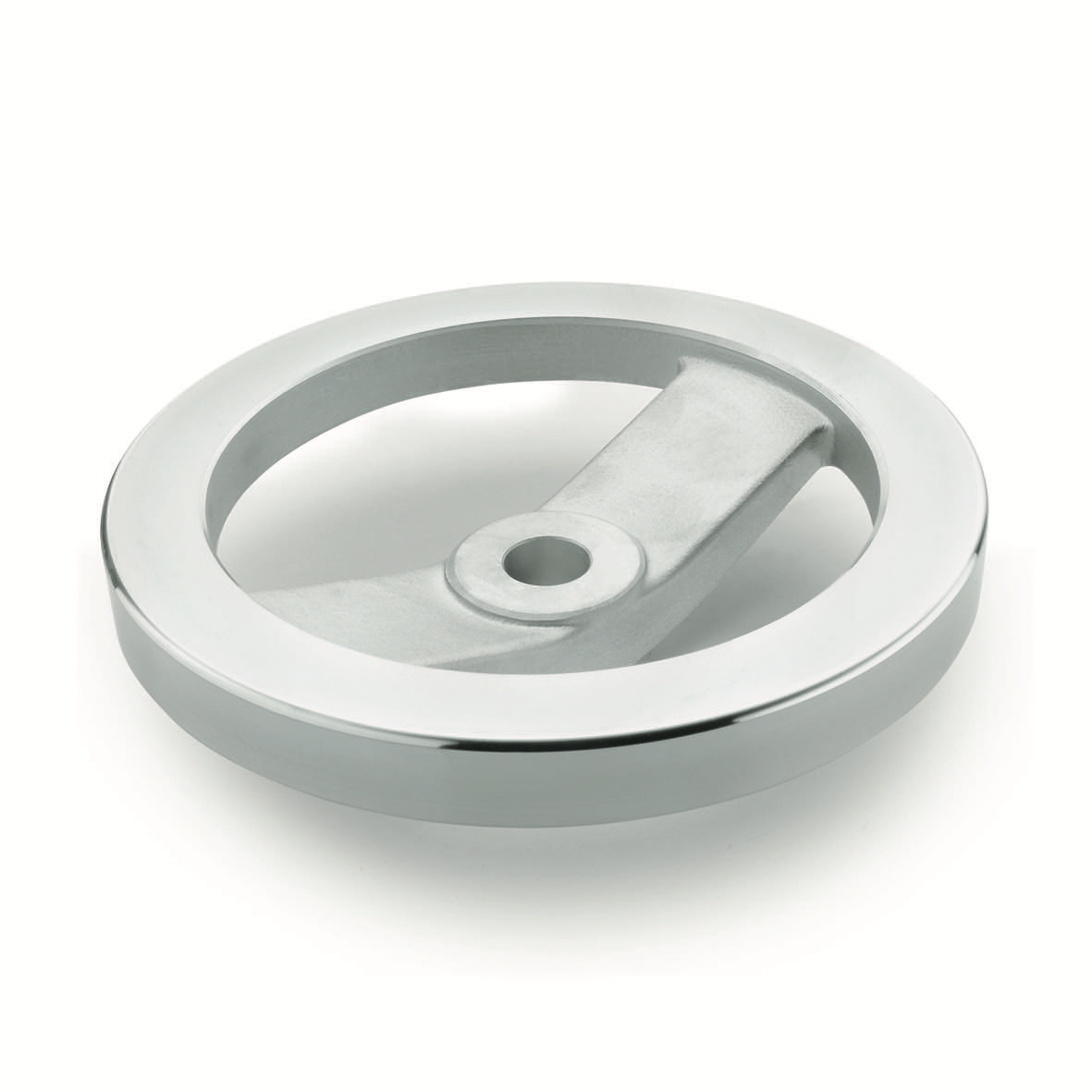

GN322 Aluminium Spoked Handwheel with Recessed Grips

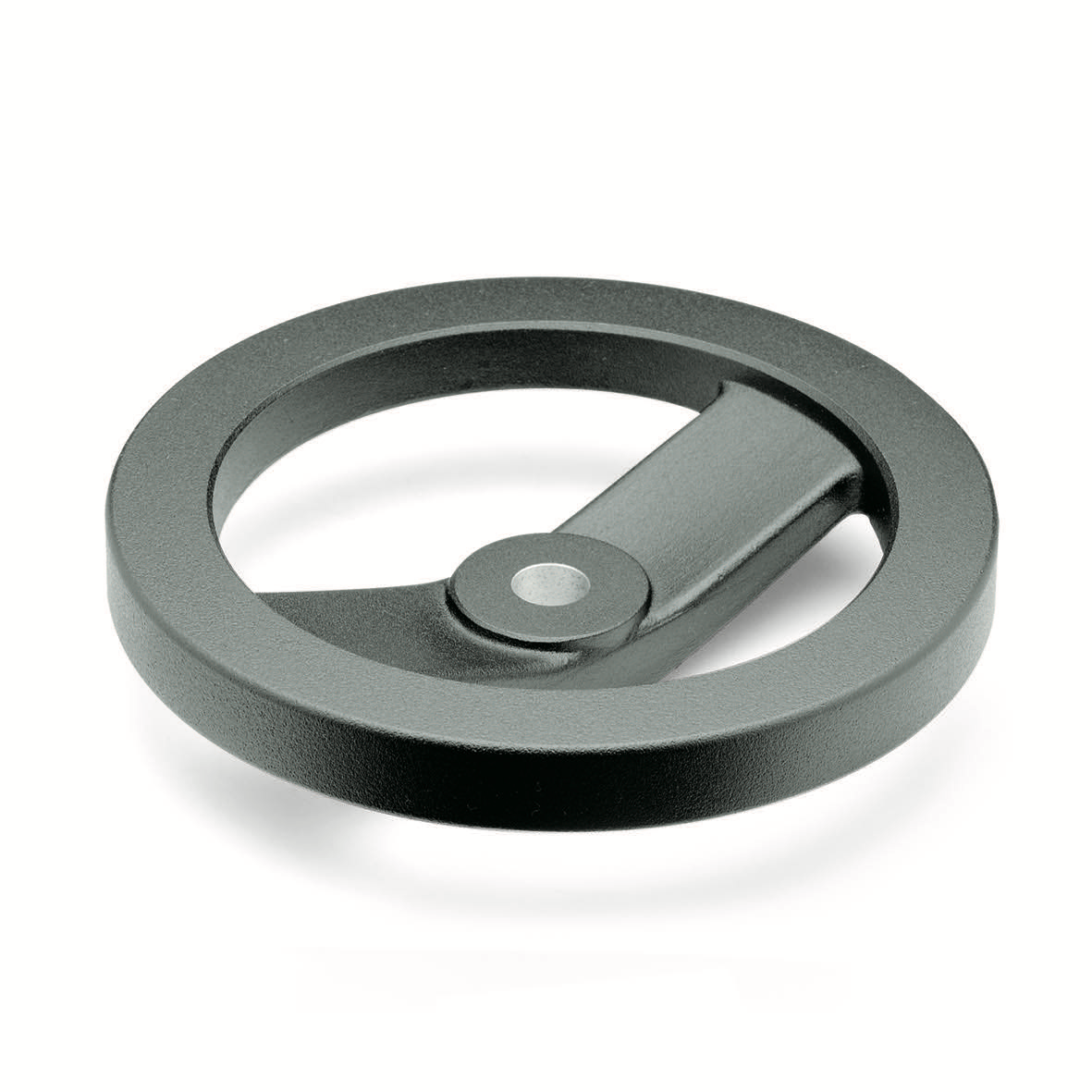

These GN 322 handwheels have a modern and attractive design. They can be supplied with or without revolving handles and have a recess at the back of the handwheel for a safe and secure grip. The highly polished rim and shot-blasted body do not require painting or other treatments for most applications. An alternative option with the same dimensions is GN324.
Specification
- Handwheel - Aluminium.
- Hub - Machined.
- Rim - Turned and high-polished
- Body - Unmachined, matt shot-blasted
- Rim concentric and square to bore.
CAD Viewer
Technical Data
