GN323.4 Disc Safety Handwheel, Friction Bearing



GN323.4: Disc Safety Handwheel
Type: D - With Revolving Steel Handle

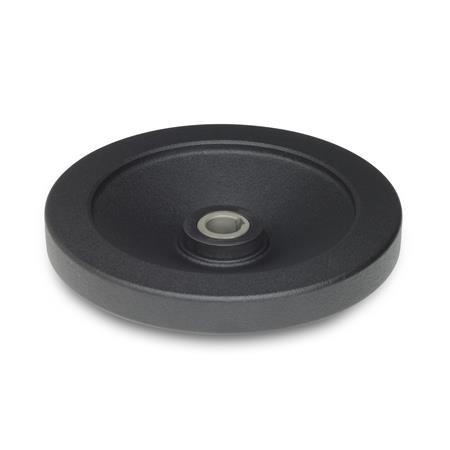

GN323.4: Disc Safety Handwheel
Type: A - Without Handle

CAD Viewer Technical Data

Series Selector


Type A - Without handle.

Type D - With revolving steel handle GN598

Mode ZI - Engage by pulling.

Mode DR - Engage by pushing.

CAD Viewer Technical Data

Product Description

GN323.4 Disc Safety Handwheel, Friction Bearing

These disc handwheels GN 323.4 are engaged into their active position by either pushing (DR), or pulling (ZI), preventing accidental adjustment. They can be supplied with or without revolving handles. The highly polished rim and shot blasted body does not require painting or other treatments, for most applications. The use of coupling attachments in handwheels other than those specified is also possible.


Aluminium AL

Hub machined

Rim turned, concentric and square to bore < 0,4

Body - Plastic coated, matt, black, textured finish.

Revolving handles GN598 - Steel ST, plastic coated, black, matt.


Coupling Attachements GN000.4
