Standard Parts for Clamping & Operating & Machine Fixtures > Handwheels & Cranked Handles > Safety Handwheels
< Previous Product Next Product >

GN323.5 Disc Safety Handwheel, Needle Bearing



 images/300/GN323.5-Safety-handwheels-with-needle-bearing-sketch_H.png

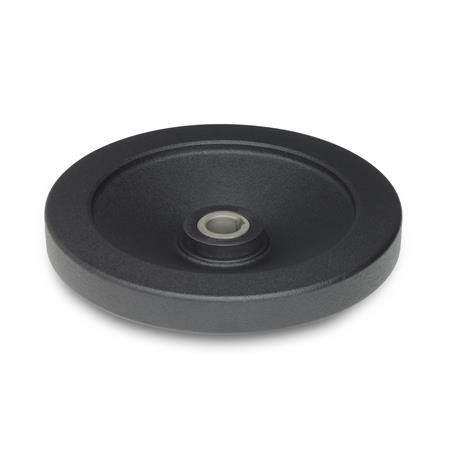

Type A - without handle.

Type D - with revolving steel handle GN598

Mode ZI - engage by pulling.

Mode DR - engage by pushing.

Select Values to Buy:

Tech Spec:



GN323.5 Disc Safety Handwheel, Needle Bearing.

These disc handwheels are engaged into their active position by either pushing DR, or pulling ZI, preventing accidental adjustment. They can be supplied with or without revolving handles. The use of coupling attachments in handwheels other than those specified is also possible.

Specification

Aluminium.

Hub machined

Rim turned, concentric and square to bore < 0,4

Body - plastic coated, matt, black, textured finish.

Revolving handles GN598, Steel, plastic coated, black, matt.

Coupling Attachment GN000.5

RoHS compliant



Select / Deselect Visible Columns
PartCoded1d2TypeModed3d4l1l2l3l4rwØCoupling
GN000.5 size
MaterialMass

GN323.5-125-K12-A-ZI125K12AZI291742181267.5544231AL0.423
GN323.5-125-K12-A-DR125K12ADR291742181267.5544231AL0.423
GN323.5-125-K12-D-ZI125K12DZI291742181267.5544231AL0.611
GN323.5-125-K12-D-DR125K12DDR291742181267.5544231AL0.611
GN323.5-140-K12-A-ZI140K12AZI291742191267.5614231AL0.512
GN323.5-140-K12-A-DR140K12ADR291742191267.5614231AL0.512
GN323.5-140-K12-D-ZI140K12DZI291742191267.5614231AL0.697
GN323.5-140-K12-D-DR140K12DDR291742191267.5614231AL0.697
GN323.5-140-K14-A-ZI140K14AZI332148191467.5614232AL0.594
GN323.5-140-K14-A-DR140K14ADR332148191467.5614232AL0.594
GN323.5-140-K14-D-ZI140K14DZI332148191467.5614232AL0.779
GN323.5-140-K14-D-DR140K14DDR332148191467.5614232AL0.779
GN323.5-160-K14-A-ZI160K14AZI332148201482.5714262AL0.715
GN323.5-160-K14-A-DR160K14ADR332148201482.5714262AL0.715
GN323.5-160-K14-D-ZI160K14DZI332148201482.5714262AL1.008
GN323.5-160-K14-D-DR160K14DDR332148201482.5714262AL1.008
GN323.5-200-K18-A-ZI200K18AZI392650241382.5894263AL1.127
GN323.5-200-K18-A-DR200K18ADR392650241382.5894263AL1.127
GN323.5-200-K18-D-ZI200K18DZI392650241382.5894263AL1.425
GN323.5-200-K18-D-DR200K18DDR392650241382.5894263AL1.425
GN323.5-250-K22-A-ZI250K22AZI463054281392.51134284AL1.837
GN323.5-250-K22-A-DR250K22ADR463054281392.51134284AL1.837
GN323.5-250-K22-D-ZI250K22DZI463054281392.51134284AL2.13
GN323.5-250-K22-D-DR250K22DDR463054281392.51134284AL2.13
