GN369.5 Crank Handle, Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - Without Slot

Type N - With Slot

Product Description

GN369.5 Stainless Steel Crank Handle

Stainless steel cranks GN 369.5 feature a compact design and are used for light drive and positioning tasks. Thanks to the material used, the cranks are also suitable for more aggressive environments.

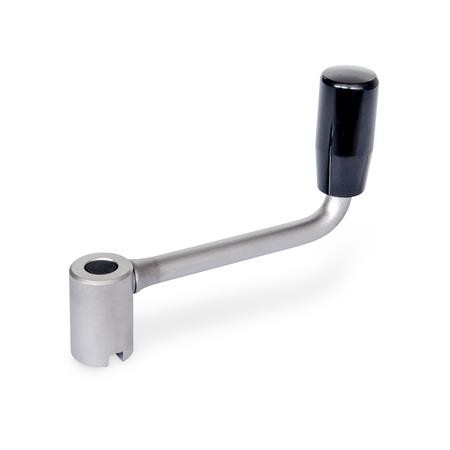

The slot of type N easily transfers the rotary movement to the shaft using a transverse pin mounted in the shaft. The crank can be removable or permanently fastened axially with a socket head cap screw DIN 912. Type A can be ordered with transverse holes for GN110.

Thanks to a simple manufacturing process, it is relatively easy and inexpensive to produce these cranks as special designs.

Specification

• Stainless Steel AISI 304, shot-blasted
• Crank butt-welded
• Cover cap - Plastic, black
• Revolving handle - Plastic, Duroplast, black, shiny finish, temperature resistant up to 110 °C
