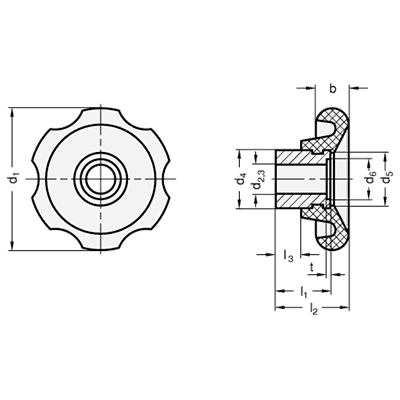

GN527.1 Handwheel, Plastic, Crenelated Rim, Undrilled

CloseNextPrevious



CloseNextPrevious

GN527.1: Handwheel



CAD Viewer Technical Data

Series Selector

CAD Viewer Technical Data

Product Description

GN527.1 Handwheel, Plastic, Crenelated Rim, Undrilled.

These handwheels with a crenelated rim GN527.1 are very sturdy control wheels which can be used either as control wheels or for clamping purposes. They are designed with a deliberately large hub bore lending themselves to applications where a large contact face or a large bore is required.

Specification

Plastic Technopolymer (Polyamide PA), glass fibre reinforced, Temperature resistant up to 120C, black, shiny finish.

Hub - Steel ST, blackened.
