GN555 Three Spoked Handwheel, Reinforced Plastic

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

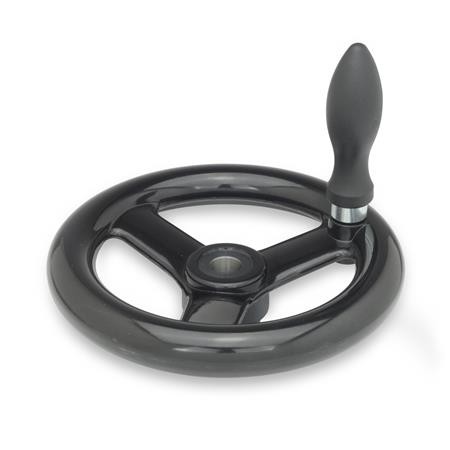

Bore code - without keyway

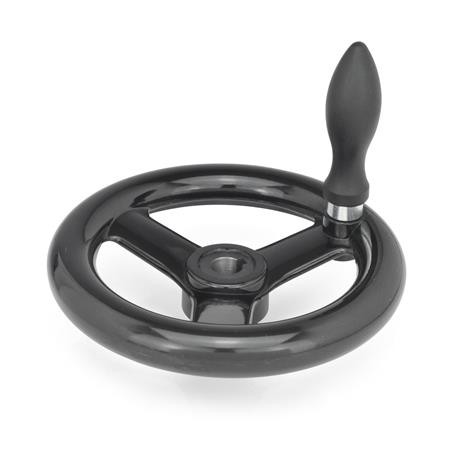

Bore code K - with keyway

Bore code V - square - on request.

Type A - without handle

Type D - with revolving handle DIN98

CAD Viewer Technical Data

Product Description

GN555 Three Spoked Handwheel, Reinforced Plastic.

These three spoked handwheels, GN 555, in reinforced plastic are easy to clean, heat resistant & cost effective.

The bore diameter and plane face of the steel bushing in these handwheels are machined only after pressing and clamped at the ring, ensuring a good concentricity and plane run of the wheel rim. The accurate fitting bore with the place face perpendicular to the bore diameter is guaranteed.

Handwheels GN555 are also available without bore.

Specification

Plastic PA, reinforced, temperature resistant up to 110°C, black, shiny finish, moulding - flash removed.

Hub bush - Steel ST, blackened.

Threaded bush - Brass BR.
