GN736.1 Control Handwheel Fine Control, Without Scale

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

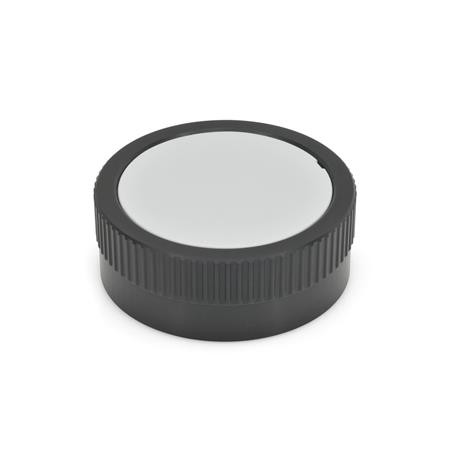

Type A - without handle

Type D - with revolving knob

Bore code B - without keyway

Bore code K - with keyway

Bore code Z - with collet

CAD Viewer Technical Data

Product Desription

GN736.1 Control knobs, Fine Control, without scale.

These control knobs are used for setting operations with low torque.

Coarse setting is made by means of the cylindrical handle (fingertip grip) followed by fine setting using the knurled rim of the knob.

All control knobs are produced with an ergonomically shaped and attractively designed rim.

The model fitted with collet offers an absolutely reliable mounting on the shaft and at the same time allows easy adjustment.

For control knobs with scale, see GN736.1 Control Handwheels with scale.

Specification

Aluminium AL, anodized, black

Hub cover - plastic PA, light grey.

Collet / Hexagon nut - brass.

Revolving Cylindrical Handles GN599.5

On Request
