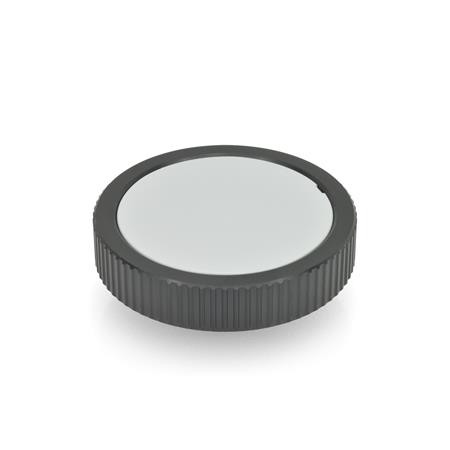

Type A - without handle.

Type D - with revolving handle GN599.5

Bore code B - without keyway.

Bore code K - with keyway.

Bore code Z - with collet

CAD Viewer Technical Data

Product Description

GN 736 Control Handwheel, Fine Control Aluminium, Fine Control

These control handwheels are used for fine setting operations needing low torque.

Coarse setting is made by means of the cylindrical handle (fingertip grip) followed by fine setting using the knurled rim of the knob.

Control knobs are produced with an ergonomically shaped and attractively designed rim.

Specification

Aluminium, anodized, black.

Hub cover - plastic, light grey.

Collet / Hexagon nut - brass

Stainless steel grub screw DIN 916 - with internal hexagon and serrated point

Revolving cylindrical handles GN599.5 - Plastic, technopolymer, black, matt
