GN949 Three Spoked Handwheels Stainless Steel clean room medical industries resistance chemical agents GN 949

All Stainless Steel Products
Standard Parts for Clamping & Operating & Machine Fixtures > Handwheels & Cranked Handles > Spoked Handwheels
< Previous Product Next Product >

GN949 Three Spoked Handwheel, Stainless Steel



images/300/GN949-Handwheels-Stainless-Steel-sketch_H.png

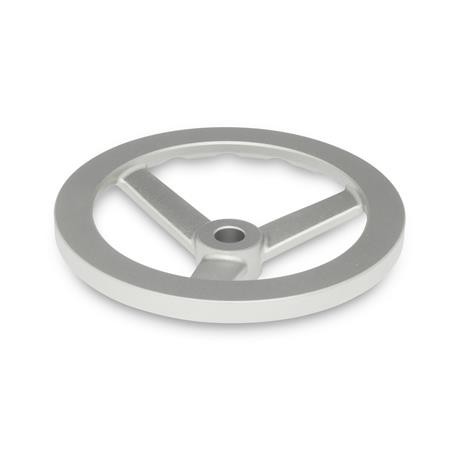

Bore code B - without keyway.

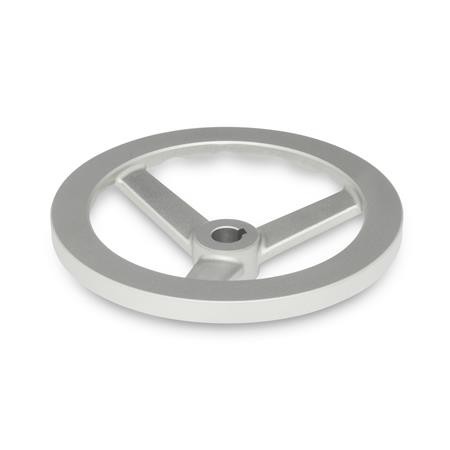

Bore code K - with keyway.

Bore code V - square - on request.



Type A - without handle.

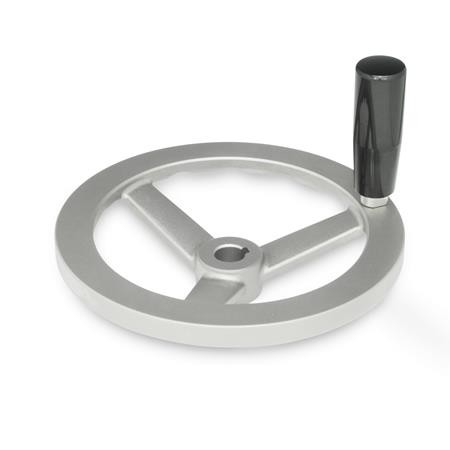

Type D - with revolving handle GN598.1

Select Values to Buy:

Tech Spec:

Product Description

GN949 Three Spoked Handwheel, Stainless Steel

These three spoked handwheels in stainless steel comply with hygiene standards and are ideal for use in cleanroom environments, such as in the food & medical industries.

The revolving handles are made of Duroplast which, in general, provides good resistance to the impact of chemical agents.

Specification

Stainless Steel precision casting, AISI CF-8, matt shot-blasted.

Hub - machined.

Rim - turned.

Revolving handle similar to GN598.1, plastic, Duroplast, black, shiny.

Spindle - Stainless Steel  NI, AISI 304

RoHS compliant

Select / Deselect Visible Columns
PartCodeMateriald1Bore
Code
d2Typed3bl1l2l3rA/FØ HandleNo
of spokes
Mass

GN949-100-B10-ANF100B10A2071527.5454491830.222
GN949-100-K10-ANF100K10A2071527.5454491830.24
GN949-100-B10-DNF100B10D2071527.5454491830.255
GN949-100-K10-DNF100K10D2071527.5454491830.26
GN949-100-B12-ANF100B12A2071527.5454491830.2
GN949-100-K12-ANF100K12A2071527.5454491830.22
GN949-100-B12-DNF100B12D2071527.5454491830.24
GN949-100-K12-DNF100K12D2071527.5454491830.28
GN949-125-B12-ANF125B12A2491628.5555592130.425
GN949-125-K12-ANF125K12A2491628.5555592130.42
GN949-125-B12-DNF125B12D2491628.5555592130.42
GN949-125-K12-DNF125K12D2491628.5555592130.454
GN949-125-B14-ANF125B14A2491628.5555592130.427
GN949-125-K14-ANF125K14A2491628.5555592130.42
GN949-125-B14-DNF125B14D2491628.5555592130.44
GN949-125-K14-DNF125K14D2491628.5555592130.46
GN949-140-B14-ANF140B14A28101830.570.562112330.64
GN949-140-K14-ANF140K14A28101830.570.562112330.61
GN949-140-B14-DNF140B14D28101830.570.562112330.7
GN949-140-K14-DNF140K14D28101830.570.562112330.68
GN949-140-B16-ANF140B16A28101830.570.562112330.6
GN949-140-K16-ANF140K16A28101830.570.562112330.61
GN949-140-B16-DNF140B16D28101830.570.562112330.68
GN949-140-K16-DNF140K16D28101830.570.562112330.65
GN949-160-B14-ANF160B14A31112035.570.571112330.825
GN949-160-K14-ANF160K14A31112035.570.571112330.88
GN949-160-B14-DNF160B14D31112035.570.571112330.92
GN949-160-K14-DNF160K14D31112035.570.571112330.9
GN949-160-B16-ANF160B16A31112035.570.571112330.805
GN949-160-K16-ANF160K16A31112035.570.571112330.856
GN949-160-B16-DNF160B16D31112035.570.571112330.9
GN949-160-K16-DNF160K16D31112035.570.571112330.96
GN949-200-B18-ANF200B18A3614233970.590112331.442
GN949-200-K18-ANF200K18A3614233970.590112331.442
GN949-200-B18-DNF200B18D3614233970.590112331.544
GN949-200-K18-DNF200K18D3614233970.590112331.544
GN949-200-V18-ANF200V18A3614233970.590112331.442
GN949-200-V18-DNF200V18D3614233970.590112331.544
GN949-200-B20-ANF200B20A3614233970.590112331.4
GN949-200-K20-ANF200K20A3614233970.590112331.4
GN949-200-B20-DNF200B20D3614233970.590112331.495
GN949-200-K20-DNF200K20D3614233970.590112331.495
GN949-200-V20-ANF200V20A3614233970.590112331.4
GN949-200-V20-DNF200V20D3614233970.590112331.495
