Catalogue Technical Specification

CAD Data

GN115.3 Type DK 3D CAD Model
GN115.3 Type VDE 3D CAD Model
GN115.3 Type UB 3D CAD Model


GN115.3 Plastic Latches, Self Extinguishing



GN115.3: Plastic Latch
Type: UB-Operation with Retractable Handle

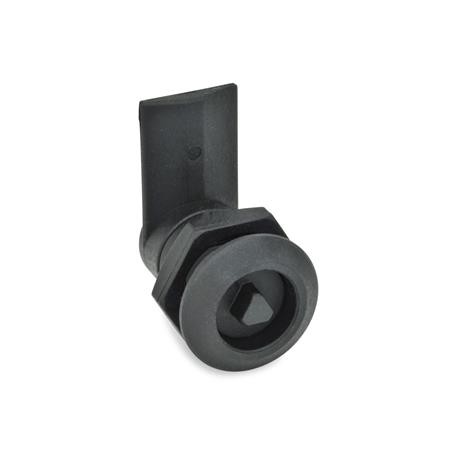

GN115.3: Plastic Latch
Type: DK - Operation with Triangular Spindle

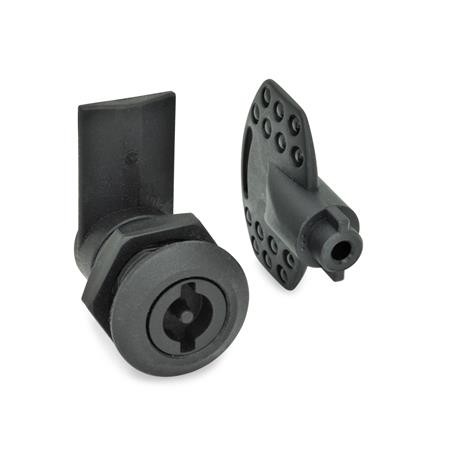

GN115.3: Plastic Latch
Type: VDE - Operation with Double Bit

CAD Viewer Technical Data

Series Selector


Type DK - Operation with triangular spindle (DK6,5)

Type VDE - Operation with double bit

Type UB - Operation with retractable handle

CAD Viewer Technical Data

Product Description

GN115.3 Plastic Latches, Self Extinguishing

Latches GN 115.3 are made entirely of a self-extinguishing plastic material, classed as self-extinguishing under UL 94 V-0.

The classification under UL 94 V-0 (Underwriters Laboratories) describes the fire behaviour of plastic. In the test, a plastic test specimen with a certain shape and with certain dimensions is placed vertically and set on fire. For classification V-0, the flame must go out within 10 seconds without generating burning drops.

Latches GN115.3 are supplied with the locking enclosed loose.

Plastic keys are included.


Plastic (Polyamide PA), glass fibre reinforced, temperature resistant up to 130 °C, black, matt similar to RAL 7021, self extinguishing

Bolt fixing - Self-tapping screw, Stainless Steel AISI 304

Protection class IP 65


Keys GN119.2
