GN614.1 Side Thrust Pin, with Spring Plunger

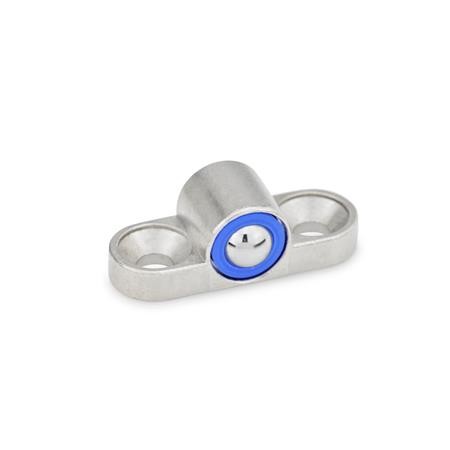

Type BKU - Fixing on both sides, with spring plunger

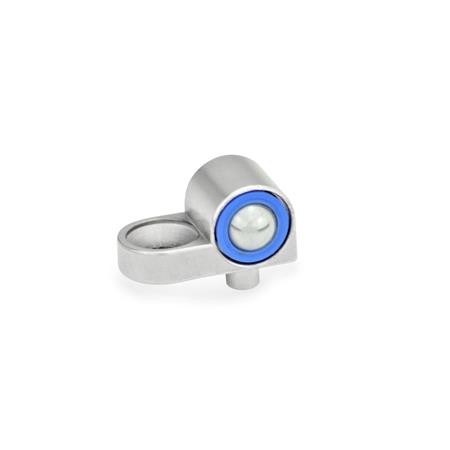

Type LKU - Fixing on the left, with spring plunger

Type RKU - Fixing on the right, with spring plunger

Select Values to Buy:

Tech Spec:



GN614.1 Side Thrust Pin, with Spring Plunger

These side thrust pins are used for arresting and as press-on or press-off elements. The easy attachment using one or two countersunk screws also allows its use where a location borehole with the tolerance field H7 for the spring plunger would not be possible from its size and manufacturability.

They consist of a holder for spring plungers and a stainless steel spring plunger GN614 of type KU.

Specification

Holder - Zinc die casting, nickel plated

Spring plunger - GN614 KU

Housing - Plastic, temperature resistant up to +50 °C

Ball - stainless steel NI AISI 420C, hardened

RoHS compliant

Select / Deselect Visible Columns
PartCoded1Typed2d3d4bh1h2l1l2wSpring load in N initialSpring load in N endMaterialMass

GN614.1-6-BKU6BKU53.2M338.54.253.27.531.66.5130.004
GN614.1-6-LKU6LKU53.2M338.54.253.27.531.66.5130.004
GN614.1-6-RKU6RKU53.2M338.54.253.27.531.66.5130.004
GN614.1-8-BKU8BKU6.54.3M4410.55.254.29.541.98180.007
GN614.1-8-LKU8LKU6.54.3M4410.55.254.29.541.98180.007
GN614.1-8-RKU8RKU6.54.3M4410.55.254.29.541.98180.007
