GN614.6 Spring Plungers without Thread, with Collar

CloseNextPrevious



CloseNextPrevious

GN614.6: Spring Plunger, Type K, Steel



CloseNextPrevious

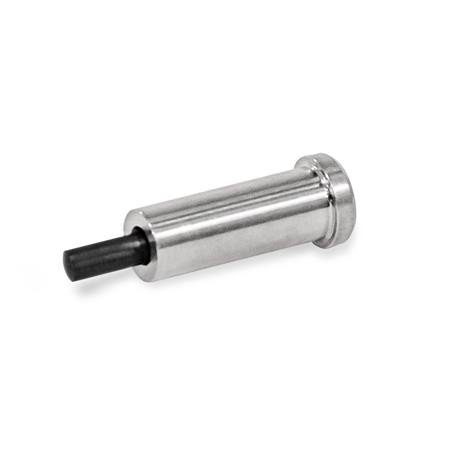

GN614.6: Spring Plunger, Type KN, Stainless Steel



Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type K - Steel, standard spring load

Type KN - Stainless steel, standard spring load


Product Description

GN614.6 Spring Plungers

These spring plungers, GN 614.6, are primarily used in toolmaking as spring-loaded stops as well as for pressure and hold-off functions.

Tolerance d1 H7 is recommended for the mounting hole.

Specification

Type K

Housing - Steel, blackened

Bolt - Steel, blackened, case hardened

Pressure Spring - Stainless steel AISI 631

Type KN

Housing - Stainless steel AISI 303

Bolt - Stainless steel AISI 303 Nitrided.

Pressure Spring - Stainless steel AISI 631
