GN616.1 Spring Plungers with Sealed Bolt

CloseNextPrevious



CloseNextPrevious

GN616.1: Spring Plunger
Type: SS - Steel, with High Spring Load



CloseNextPrevious

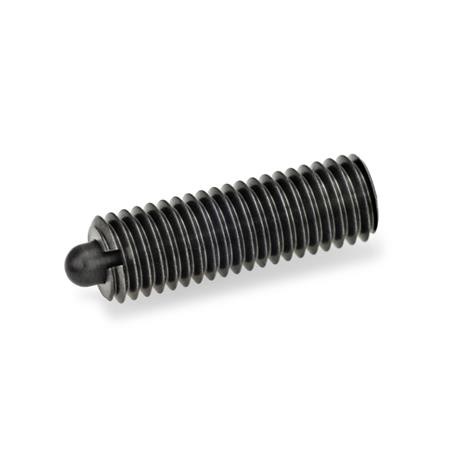

GN616.1: Spring Plunger
Type: S - Steel, Standard Spring Load



Choose your Part

Please select desired options to reveal part number, price and availability

d1 Thread

M8 M10 M12 M16

Type

S SS
Part Selected:
GN616.1-M8-S £6.04 (£7.25 inc VAT) Copy Link to Selected Part
Value discounts applied at basket
-+

Stock Availability
No Stock for immediate dispatch
Quantity:

Options

Type S - Steel, with standard spring load

Type SS - Steel, with high spring load


Product Description

GN616.1 Spring Plungers with Sealed Bolt

These spring plungers, GN 616.1, are used for locking as well as for pressure and hold-off functions. Entry of liquids and dirt is prevented by the seal.

The slit on the plunger side is used for screwing into pocket holes. For this, a special screwdriver is available as GN616.5

Specification

Housing - Steel, blackened

Bolt - Steel, hardened

Spring - Stainless Steel AISI 303

Sealing - Rubber NBR (Perbunan)

Idntification of type SS - housing marked wiith two longitudinal markings

Accessories

Screwdrivers GN616.5
