GN616 Spring plungers hex drive detents ejectors GN 616

Mould Components > Mould Assembly Components
Standard Machine Elements > Indexing Plungers, Locking pins & Spring Plungers > Spring Plungers
< Previous Product Next Product >

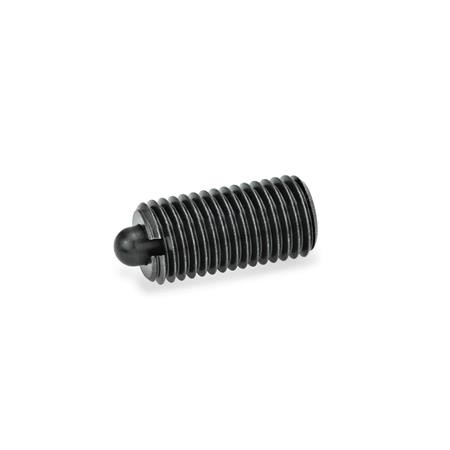

GN616 Spring Plunger, with Bolt, Steel, Blackened





Type S - Steel bolt, standard spring load

Type SS - Steel bolt, high spring load

Type K - Plastic bolt, standard spring load

Select Values to Buy:

Tech Spec:



GN 616 Spring Plunger, with Bolt, Steel, Blackened

Spring plungers GN616 are used as detents as well as for push-on and push-off applications and ejectors.

The slot on the plunger side is provided for blind hole applications.  Special screw drivers GN616.5 or GN611.5 are available.

Specification

Housing - Steel, blackened

Bolt Type S and Type SS - Steel, hardened

Bolt Type K - Plastic, Polyacetol POM, available in sizes M4 - M16. Temperature resistant to 50°C.

Spring - Stainless Steel, AISI 631

Type SS - Identification by housing with 2 longitudinal markings

Thread locking PFB / MVK - available on request.

RoHS compliant

Select / Deselect Visible Columns
Close
Hided1 Show
HideTypeShow
Hided2Show
HidelShow
Hidesw
Internal Hexagon
Show
HidewShow
HideSpring load
in N
Initial
Show
HideSpring load
in N
End
Show
HideMaterialShow
PartCoded1 Typed2lsw
Internal Hexagon
wSpring load
in N
Initial
Spring load
in N
End
MaterialMass

GN616-M3-SM3S1120.7124ST0
GN616-M4-SM4S1.5151.31.54.516ST0.001
GN616-M4-KM4K1.5151.31.54.516ST0.001
GN616-M5-SM5S2.4181.52.3619ST0.002
GN616-M5-SSM5SS2.4181.52.31140ST0.002
GN616-M5-KM5K2.4181.52.3619ST0.002
GN616-M6-SM6S2.72022.5619ST0.003
GN616-M6-SSM6SS2.72022.51543ST0.003
GN616-M6-KM6K2.72022.5619ST0.002
GN616-M8-SM8S3.5222.531039ST0.006
GN616-M8-SSM8SS3.5222.532075ST0.006
GN616-M8-KM8K3.5222.531039ST0.005
GN616-M10-SM10S422331039ST0.009
GN616-M10-SSM10SS422332075ST0.009
GN616-M10-KM10K422331039ST0.01
GN616-M12-SM12S628441253ST0.016
GN616-M12-SSM12SS6284445120ST0.016
GN616-M12-KM12K628441253ST0.014
GN616-M16-SM16S7.5325545100ST0.035
GN616-M16-SSM16SS7.5325564160ST0.03
GN616-M16-KM16K7.5325545100ST0.031
GN616-M20-SM20S10406752125ST0.065
GN616-M20-SSM20SS10406775195ST0.065
GN616-M24-SM24S125281070170ST0.131
GN616-M24-SSM24SS125281070170ST0.12
