Type A - with lifting ring
Product Description

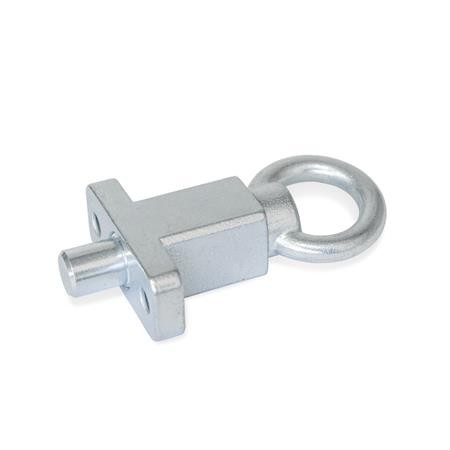

GN722.5 Indexing Plunger, Steel, with Flange for Surface Mounting, Right-Angled to the Plunger Pin
For indexing plungers GN 722.5, the plunger pin is actuated by a lifting ring. This take place by hand, with a Bowden cable or an extended gear lever handle with hook. The versions ZB and SW are designed for steel construction applications.
The dimensional tolerances between the plunger pin and the guide have been chosen to ensure functional reliability even after welding, application of a corrosion protection layer or in the event of soiling.
Flexible options are available for fastening. The hexagonal holes permit the use of socket cap screws DIN 912 and hexagon screws or nuts as per DIN 931 or DIN 934.
Specification
Guide - Steel precision casting, zinc plated, blue passivated ZB, zinc plated and plastic coated, black, RAL 9005, textured finish SW
Plunger pin / Lifting ring - Steel, zinc plated, blue passivated
Spring - Stainless Steel AISI 316Ti
Grub screw DIN 915 - Steel, zinc plated
