Indexing Plungers GN817.3 For Precision Locating with without Rest Position

Standard Machine Elements > Indexing Plungers, Locking pins & Spring Plungers > Indexing Plungers
< Previous Product Next Product >

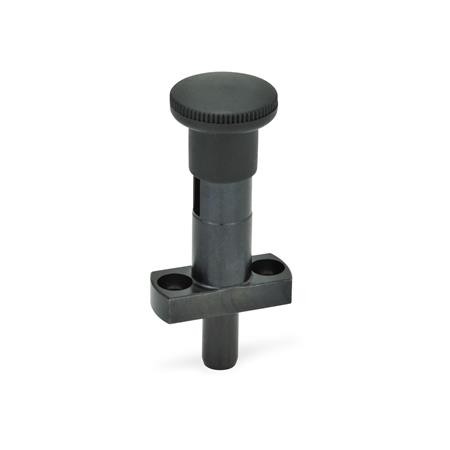

GN817.3 Indexing Plunger, Optional Rest Position, Steel





Type B - without rest position

Type C - with rest position

Select Values to Buy:

Tech Spec:



GN817.3 Indexing Plungers, for Precision Locating

These indexing plungers have been developed to enable precise locating when guide bushes GN770 are used.

For this purpose as a rule, as a plain guide bush (Type A), is used whereby the dimension l3 of the plunger determines the length of the bush.

The precise location is, therefore, not dependent on the guide pin in the plunger, but on the accuracy of the guide bush (bore tolerance G6) and the plunger (tolerance h7). Both components are hardened and ground. It goes without saying that the bush length also influences the accuracy of the positioning.

Type C with rest position is used in such applications where the plunger must not protrude continually. In that case the knob is retracted and afterwards turned by 90. A notch is provided for the key to prevent the plunger from turning by error or vibration.

 Specification

Steel, blackened

Plunger - hardened and ground

Knob - Plastic, Technopolymer (Polyamide PA), black, matt, not removable.

RoHS compliant

Select / Deselect Visible Columns
PartCodeD1L1TypeMateriall2l3bd2d3d4kl4l5l6Spring load
in
N initial
Spring load
in N end
Mass

GN817.3-6-18-B618BST9913234.33423456256250.043
GN817.3-6-18-C618CST9913234.33423456256250.047
GN817.3-6-24-B624BST91513234.33423456256250.045
GN817.3-6-24-C624CST91513234.33423456256250.048
GN817.3-8-20-B820BST101016285.53826518278.5280.074
GN817.3-8-20-C820CST101016285.53826518278.5280.08
GN817.3-8-26-B826BST101616285.53826518278.5280.077
GN817.3-8-26-C826CST101616285.53826518278.5280.083
GN817.3-8-30-C830CST102016285.53826518278.5280.084
GN817.3-10-24-B1024BST121216285.53826518279.5380.077
GN817.3-10-24-C1024CST121216285.53826518279.5380.083
GN817.3-10-28-B1028BST121616285.53826518279.5380.079
GN817.3-10-32-B1032BST122016285.53826518279.5380.08
GN817.3-10-32-C1032CST122016285.53826518279.5380.1
