GN817.4 Indexing Plunger, with T Handle, Stainless Steel



Type B - without rest position, without lock nut

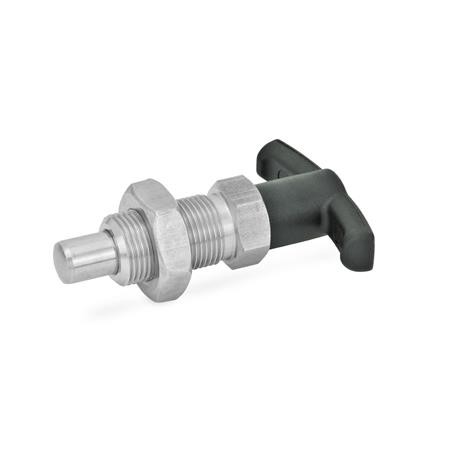

Type BK - without rest position, with lock nut

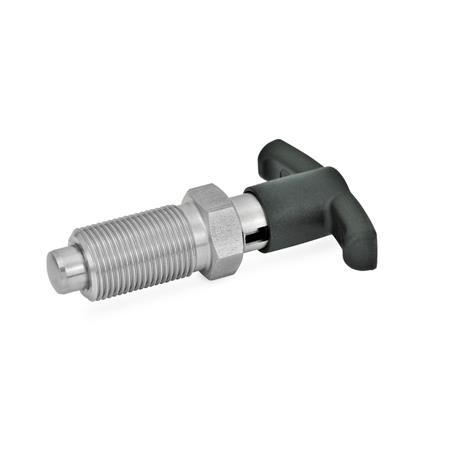

Type - with rest position, without lock nut

Type CK - with rest position, with lock nut

Select Values to Buy:

Tech Spec:



GN817.4 Indexing Plunger, with T Handle, Stainless Steel

These stainless steel indexing plungers GN817.4 are similar to GN817, but with a T-handle instead of a round head.

This shape allows better visual orientation of the indexing position of Type C and is advantageous when greater unlocking forces occur.

Type C with rest position is used in such applications where the plunger must not protrude continually. In that case the knob is retracted and afterwards turned by 90. A notch keeps the plunger in this position.

Specification

Stainless Steel NI AISI 303

Plunger - chemically nickel plated

T-Handle - Plastic (Polyamide PA), not removable, black, matt.

RoHS compliant

Select / Deselect Visible Columns
PartCoded1l1TypeMateriald2kl2l3l4l5A/FSpring load
in
N initial
Spring load
in
N end
Mass

GN817.4-6-6-B-NI66BNIM12x1,5204822654146.5190.031
GN817.4-6-6-BK-NI66BKNIM12x1,5204822654146.5190.031
GN817.4-6-6-C-NI66CNIM12x1,5204822654146.5190.034
GN817.4-6-6-CK-NI66CKNIM12x1,5204822654146.5190.04
GN817.4-6-9-B-NI69BNIM12x1,5204822654146250.031
GN817.4-6-9-BK-NI69BKNIM12x1,5204822654146250.043
GN817.4-6-9-C-NI69CNIM12x1,5204822654146250.035
GN817.4-6-9-CK-NI69CKNIM12x1,5204822654146250.04
GN817.4-8-8-B-NI88BNIM16x1,5255926859178.5260.064
GN817.4-8-8-BK-NI88BKNIM16x1,5255926859178.5260.08
GN817.4-8-8-C-NI88CNIM16x1,5255926859178.5260.069
GN817.4-8-8-CK-NI88CKNIM16x1,5255926859178.5260.04
GN817.4-8-12-B-NI812BNIM16x1,5255926859178.5280.064
GN817.4-8-12-BK-NI812BKNIM16x1,5255926859178.5280.09
GN817.4-8-12-C-NI812CNIM16x1,5255926859178.5280.071
GN817.4-8-12-CK-NI812CKNIM16x1,5255926859178.5280.08
GN817.4-10-12-B-NI1012BNIM16x1,5255926859179.5380.066
GN817.4-10-12-BK-NI1012BKNIM16x1,5255926859179.5380.09
GN817.4-10-12-C-NI1012CNIM16x1,5255926859179.5380.072
GN817.4-10-12-CK-NI1012CKNIM16x1,5255926859179.5380.069
GN817.4-12-15-B-NI1215BNIM20x1,525683310592211.5400.12
GN817.4-12-15-BK-NI1215BKNIM20x1,525683310592211.5400.13
GN817.4-12-15-C-NI1215CNIM20x1,525683310592211.5400.127
GN817.4-12-15-CK-NI1215CKNIM20x1,525683310592211.5400.16
#83651.11~83654.59#



Also available in steel.
