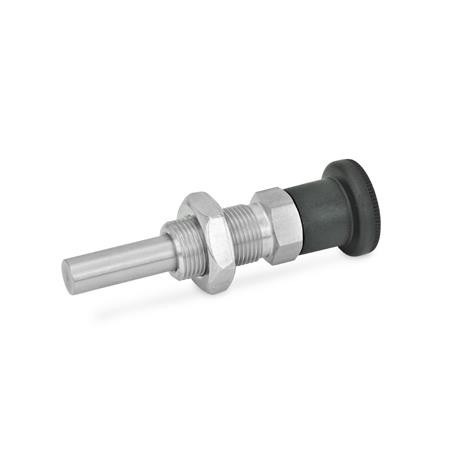

Type BK - without rest position, with locknut.

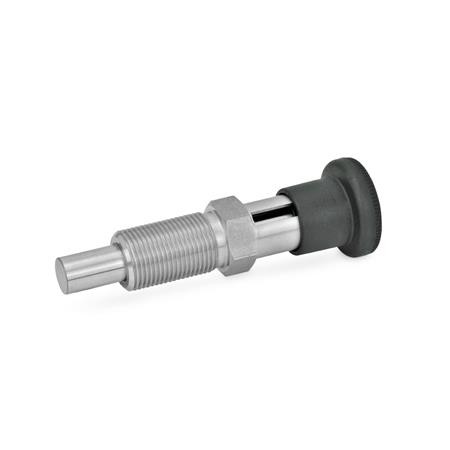

Type C - with rest position, without lock nut.

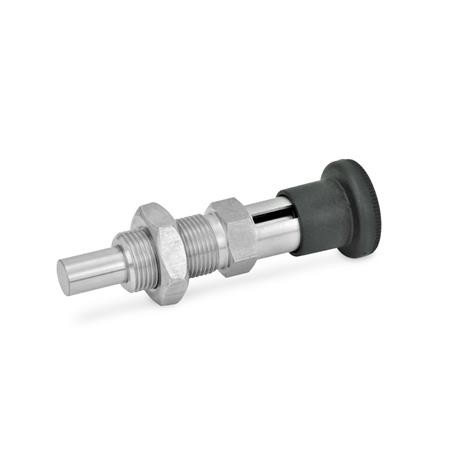

Type CK - with rest position, with lock nut.

CAD Viewer Technical Data

Product Description

GN817.8 Indexing Plunger, Stainless Steel, Removable

These versatile indexing plungers have been designed so that special versions of the indexing pins can be made economically in smaller unit quantities. Being made of stainless steel, they are suitable for use in clean room environments, such as in the food and medical industries.

If required, the indexing pins can be machined by the user as shown in the drawing above. They are assembled with a countersunk screw and can therefore be taken apart and re-assembled if necessary. All parts are supplied in a non-assembled set.

The indexing plungers type C/CK are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° after being retracted. A notch keeps the plunger in this position.

Specification

Threaded body - Stainless Steel NI.

Plunger, Lock nut - Stainless Steel NI AISI 303

Knob - Plastic (Polyamide PA), black, matt.

Also available in steel
