DIN319 Ball Knobs steel threaded bush tapped hole DIN 319

Standard Parts for Clamping & Operating & Machine Fixtures > Knobs & Handles > Knobs
Next Product >

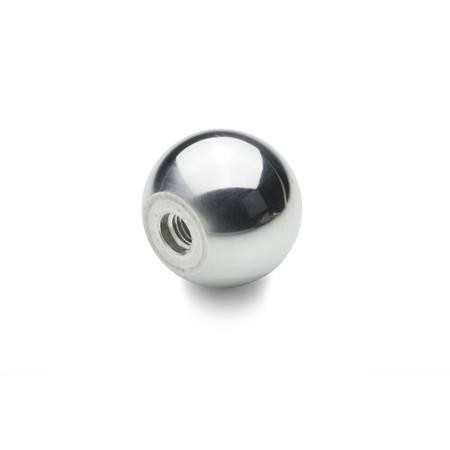

DIN319 Ball Knob, Plastic, Tapped Hole or Threaded Bush



Type C - with Tapped Hole

Type E - with Tapped Bush

Type KN - with Plain Hole H11

Select Values to Buy:

Tech Spec:



DIN 319 Ball Knob, Plastic, Tapped Hole or Threaded Bush

Comfortable, modern design for use on crank handles, handwheels and levers. Available in a range of materials, and in either threaded or press on variants.

Specification

Plastic KU - Duroplast (Phenolic PF), Flash removed and polished, black (standard colour)

Bush (Type E) - Steel, zinc plated (standard)

Plastic KT - Technopolymer (Polyamide PA), shock resistant, black, matt (standard colour)

Bush (Type E) - Steel, zinc plated

RoHS compliant

Select / Deselect Visible Columns
PartCodeMateriald1d2d3d4ht1t2TypeMass

DIN319-KU-10-M3-CKU10M3~611.26~C0.001
DIN319-KU-12-M4-CKU12M4~611.26~C0.001
DIN319-KU-16-M4-CKU16M4~81566C0.002
DIN319-KT-16-M4-CKT16M4~81566C0.003
DIN319-KU-16-M5-CKU16M5~81566C0.002
DIN319-KT-16-M5-CKT16M5~81566C0.002
DIN319-KU-20-M5-CKU20M5~12187.57.5C0.005
DIN319-KT-20-M5-CKT20M5~12187.57.5C0.005
DIN319-KU-20-M6-CKU20M6~12187.57.5C0.005
DIN319-KT-20-M6-CKT20M6~12187.57.5C0.005
DIN319-KU-20-M5-EKU20~M512187.57.5E0.007
DIN319-KT-20-M5-EKT20~M512187.57.5E0.008
DIN319-KU-25-B10-KNKU25B10~1522.599KN0.009
DIN319-KU-25-M5-CKU25M5~1522.599C0.01
DIN319-KU-25-M6-CKU25M6~1522.599C0.01
DIN319-KT-25-M6-CKT25M6~1522.599C0.01
DIN319-KU-25-M8-CKU25M8~1522.599C0.009
DIN319-KT-25-M8-CKT25M8~1522.599C0.01
DIN319-KU-25-M6-EKU25~M61522.599E0.012
DIN319-KT-25-M6-EKT25~M61522.599E0.014
DIN319-KU-25-M8-EKU25~M81522.599E0.016
DIN319-KU-30-M8-CKU30M8~152812~C0.017
DIN319-KU-32-B12-KNKU32B12~18291212KN0.019
DIN319-KU-32-M6-CKU32M6~18291212C0.023
DIN319-KU-32-M8-CKU32M8~18291212C0.02
DIN319-KT-32-M8-CKT32M8~18291212C0.02
DIN319-KU-32-M10-CKU32M10~18291212C0.019
DIN319-KT-32-M10-CKT32M10~18291212C0.022
DIN319-KU-32-M8-EKU32~M818291212E0.031
DIN319-KT-32-M8-EKT32~M818291212E0.028
DIN319-KU-35-M10-CKU35M10~1832.515~C0.027
DIN319-KU-40-M8-CKU40M8~22371515C0.04
DIN319-KU-40-M10-CKU40M10~22371515C0.04
DIN319-KT-40-M10-CKT40M10~22371515C0.041
DIN319-KU-40-M12-CKU40M12~22371515C0.039
DIN319-KT-40-M12-CKT40M12~22371515C0.04
DIN319-KU-40-M10-EKU40~M1022371515E0.055
DIN319-KU-40-M12-EKU40~M1222371515E0.061
DIN319-KU-50-M12-CKU50M12~28461818C0.089
DIN319-KU-50-M12-EKU50~M1228461818E0.11
DIN319-KU-20-B8-KN0.004
#22825.53~22827.72#

Application Example

Here you can see an example of DIN 319 Ball knobs in use, on a bending machine.
