DIN319 Ball Knob, Plastic, Tapped Hole or Threaded Bush
CloseNextPreviousDIN319: Ball Knob - Material: KT
Type: C - with Tapped Hole (no bushing)
CloseNextPreviousDIN319: Ball Knob - Material: KU
Type: C - with Tapped Hole (no bushing)
Choose your Part
Please select desired options to reveal part number, price and availability
Options

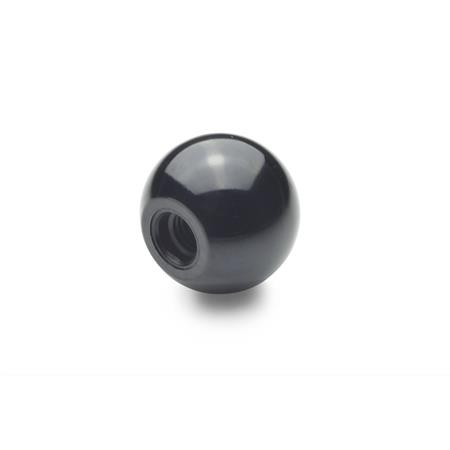

Type C - with Tapped Hole (no bushing)

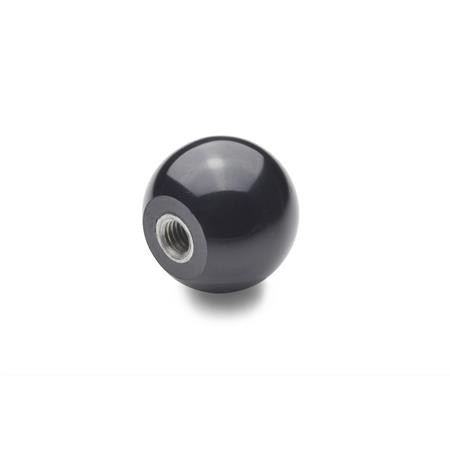

Type E - with Tapped Bushing
Product Description
DIN319 Plastic Ball Knob with Tapped Hole or Threaded Bush
Ball knobs/handles are a commonplace component used for many applications, and have a classic design which has stood the test of time. They are designed to fit snugly into the palm of the hand for comfortable usage.
The DIN 319 ball knob features a comfortable, modern design for use on crank handles, handwheels and levers. Available in a range of materials, and in either threaded or press on variants.
Ball knobs in sizes 30 and 35, various threads of type C and ball knobs made of technopolymer (KT), are not on the official DIN standard sheet.
The ball knob comes in either a matt or polished black plastic finish with a steel bush.
Specification
- Plastic Knob - Duroplast (Phenolic PF) KU, flash removed and polished, black, shiny finish.

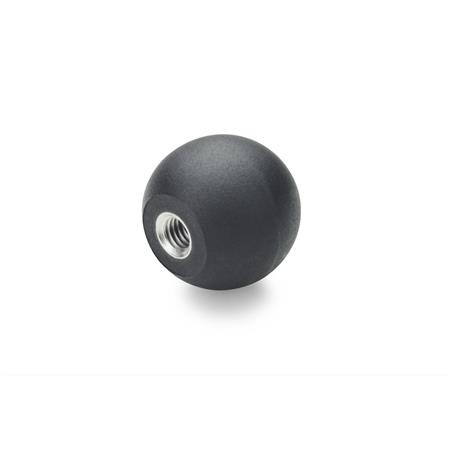

- Plastic Knob - Technopolymer (Polyamide PA) KT, shock resistant, black, matt finish.
- Bush (Type E) - Steel, zinc plated, standard.
CAD Viewer
Technical Data
