GN319.5 Revolving Ball Knob, Stainless Steel Shaft

CloseNextPrevious



CloseNextPrevious

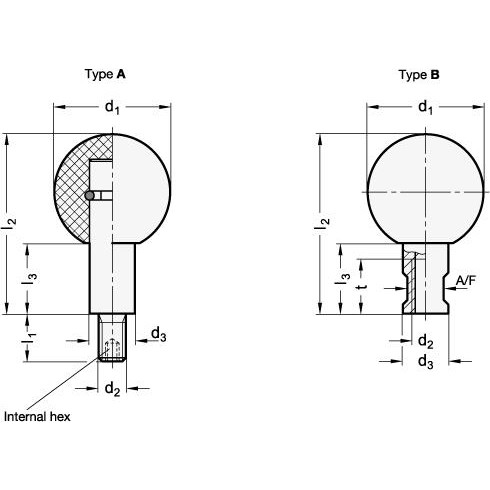

GN319.5: Revolving Ball Knob
Type: B - with Threaded Insert



CloseNextPrevious

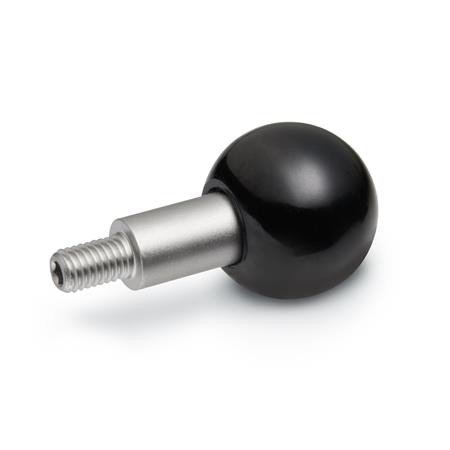

GN319.5: Revolving Ball Knob
Type: A - with Threaded Stud



CAD Viewer Technical Data

Series Selector

Options

Type A - With Threaded Stud

Type B - With Threaded Insert

CAD Viewer Technical Data

Product Description

GN319.5 Revolving Ball Knob, Stainless Steel Shaft

These revolving ball knobs can be used instead of revolving handles e.g. with handwheels.

They have the same assembly dimensions as the handles DIN39, DIN98 and GN598

For variant with steel shaft, see GN319.2

Specification

Knob - Plastic, Duroplast (Phenolic PF), temperature resistant up to 110° C, black, shiny finish.

Shaft - Stainless Steel NI, AISI 303, matt shot-blasted.
