GN598.3: Retractable Handle - Plastic



CAD Viewer Technical Data

Series Selector

CAD Viewer Technical Data

Poduct Description

GN598.3 Retractable Handle, Hold In 2 Positions, Plastic, Steel Mechanism.

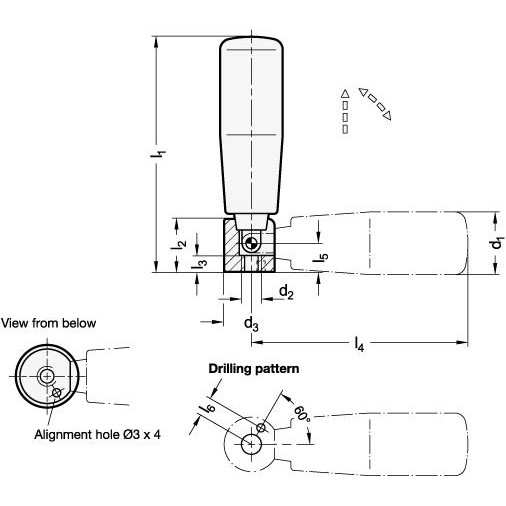

These plastic retractable handles with steel locking safety mechanism, and hold in both positions are suitable when the handle must be withdrawn during automatic operations. The handle is pulled out of its taper seating in the direction of the arrow and then tilted. A compression spring locks the handle in both end positions.

A positive lock is achieved in the operating position by way of a taper seating.

Specification

Handle - Plastic Duroplast (Phenolic PF) KU, temperature resistant up to 110° C black, shiny finish, revolving

Retractable mechanism - Steel ST, blackened
