GN676 Push Pull Knurled Knob, Reinforced Plastic, Brass Bush

Select Values to Buy:

Tech Spec:



GN676 Push Pull Knurled Knob, Reinforced Plastic, Brass Bush

These knurled knobs are used for manual applications including clamping or pulling. The concave top of the nut is a comfortable rest point for the thumb during a pulling application.

The knurled section is a useful addition to facilitate the installation of a nut when used for lighter clamping applications, and also makes the thumb grip more secure.

Female variant - male version also available GN676.

Specification

Plastic Technopolymer (Polyamide PA), glass fibre reinforced, temperature resistant up to 130° C.

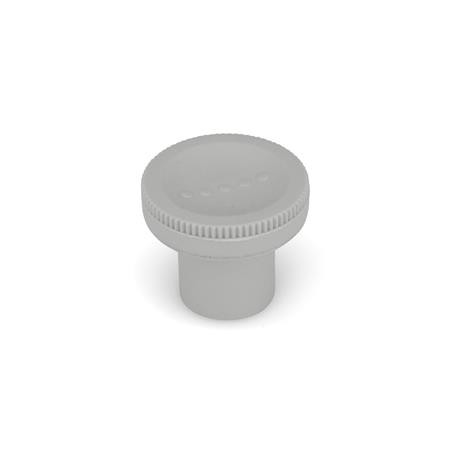

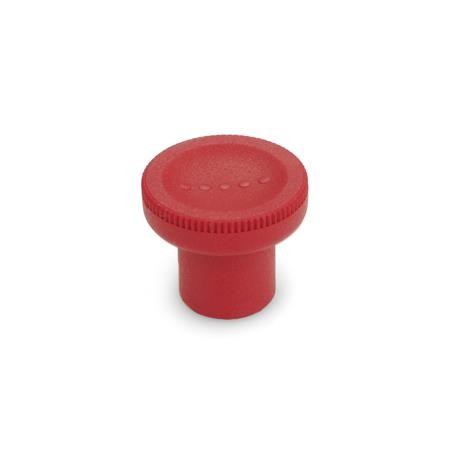

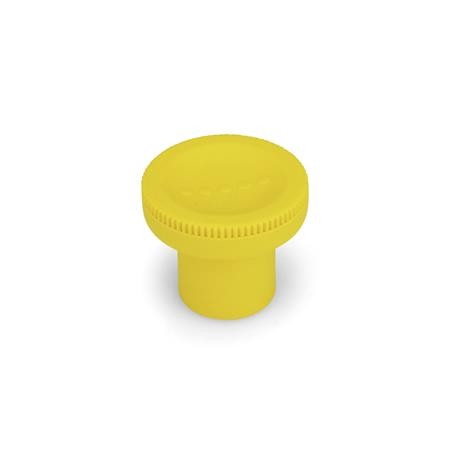

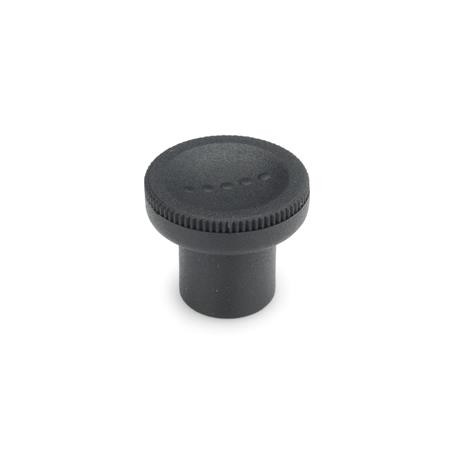

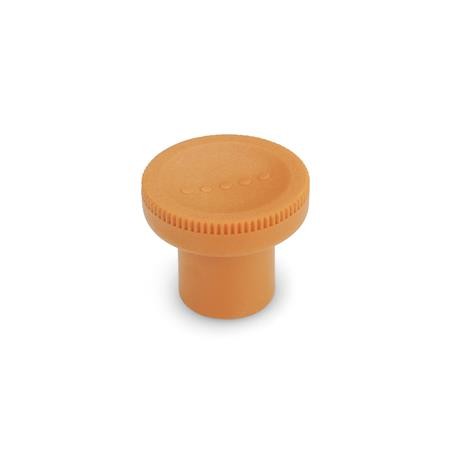

Black-grey SG RAL 7021, matt blasted. Red* RT RAL 3000, matt blasted. Orange* OR RAL 2004, matt blasted. Grey* GR RAL 7035, matt blasted. Yellow* GB RAL 1021, matt blasted. Blue* BL RAL 5024, matt blasted.

* not available from stock, requires a minimum order quantity

Bush - brass

RoHS compliant

Select / Deselect Visible Columns

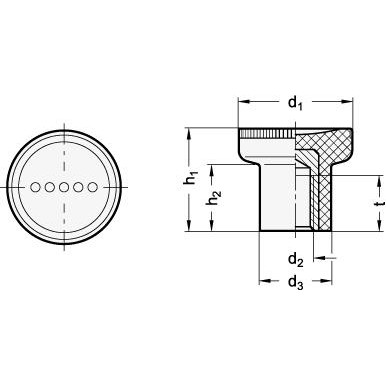

PartCoded1d2Colourd3h1h2t min.MaterialMass

GN676-16-M3-SG16M3SG8.5138.56PA0.003
GN676-16-M3-RT16M3RT8.5138.56PA0.003
GN676-16-M3-OR16M3OR8.5138.56PA0.003
GN676-16-M3-GR16M3GR8.5138.56PA0.003
GN676-16-M3-GB16M3GB8.5138.56PA0.003
GN676-16-M3-BL16M3BL8.5138.56PA0.003
GN676-18-M4-SG18M4SG10.515.510.56PA0.004
GN676-18-M4-RT18M4RT10.515.510.56PA0.004
GN676-18-M4-OR18M4OR10.515.510.56PA0.004
GN676-18-M4-GR18M4GR10.515.510.56PA0.004
GN676-18-M4-GB18M4GB10.515.510.56PA0.005
GN676-18-M4-BL18M4BL10.515.510.56PA0.004
GN676-21-M4-SG21M4SG12.51810.510PA0.008
GN676-21-M4-RT21M4RT12.51810.510PA0.007
GN676-21-M4-OR21M4OR12.51810.510PA0.007
GN676-21-M4-GR21M4GR12.51810.510PA0.008
GN676-21-M4-GB21M4GB12.51810.510PA0.008
GN676-21-M4-BL21M4BL12.51810.510PA0.008
GN676-21-M5-SG21M5SG12.51810.510PA0.007
GN676-21-M5-RT21M5RT12.51810.510PA0.007
GN676-21-M5-OR21M5OR12.51810.510PA0.006
GN676-21-M5-GR21M5GR12.51810.510PA0.007
GN676-21-M5-GB21M5GB12.51810.510PA0.007
GN676-21-M5-BL21M5BL12.51810.510PA0.007
GN676-25-M6-SG25M6SG14.522.51412PA0.011
GN676-25-M6-RT25M6RT14.522.51412PA0.011
GN676-25-M6-OR25M6OR14.522.51412PA0.011
GN676-25-M6-GR25M6GR14.522.51412PA0.011
GN676-25-M6-GB25M6GB14.522.51412PA0.011
GN676-25-M6-BL25M6BL14.522.51412PA0.011
GN676-25-M8-SG25M8SG14.522.51412PA0.012
GN676-25-M8-RT25M8RT14.522.51412PA0.01
GN676-25-M8-OR25M8OR14.522.51412PA0.015
GN676-25-M8-GR25M8GR14.522.51412PA0.016
GN676-25-M8-GB25M8GB14.522.51412PA0.015
GN676-25-M8-BL25M8BL14.522.51412PA0.016
GN676-31-M8-SG31M8SG18.5271715PA0.021
GN676-31-M8-RT31M8RT18.5271715PA0.02
GN676-31-M8-OR31M8OR18.5271715PA0.008
GN676-31-M8-GR31M8GR18.5271715PA0.019
GN676-31-M8-GB31M8GB18.5271715PA0.02
GN676-31-M8-BL31M8BL18.5271715PA0.019
GN676-31-M10-SG31M10SG18.5271717PA0.019
GN676-31-M10-RT31M10RT18.5271717PA0.019
GN676-31-M10-OR31M10OR18.5271717PA0.021
GN676-31-M10-GR31M10GR18.5271717PA0.022
GN676-31-M10-GB31M10GB18.5271717PA0.022
GN676-31-M10-BL31M10BL18.5271717PA0.022
#4328.146~4330.224#



Standard part number EKK has been changed! Because of a change of the standard part number your input is no longer valid. Your search was automatically changed to the new standard part number GN676.
