GN719.2 Domed Gear Knob, Plastic

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

CAD Viewer Technical Data

Product Description

GN 719.2 Domed Gear Knob

These domed gear knobs are often used in place of ball knobs DIN319 for use on gear levers and shafts, and are often chosen for ergonomical reasons.

Domed gear knobs with bore (B) are mounted by driving them over the shaft with a plastic hammer. A threaded shaft is not required. The shaft end should preferably be slightly rounded or phased (30°).

Specification

Plastic Technopolymer (Polyamide PA)

Thread version temperature resistant up to 80° C.

Press on type temperature resistant up to 50° C

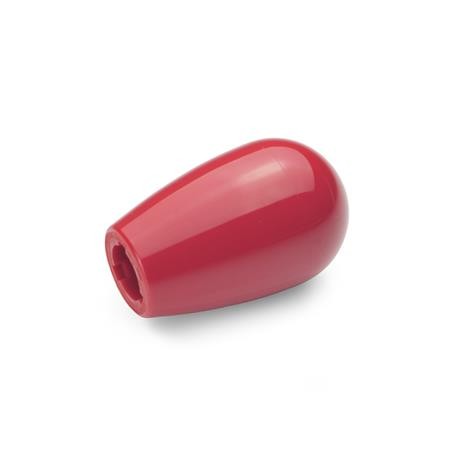

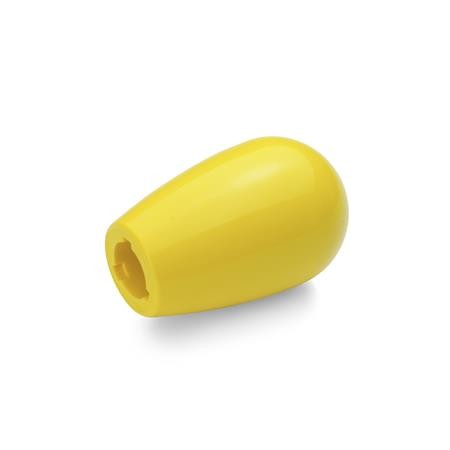

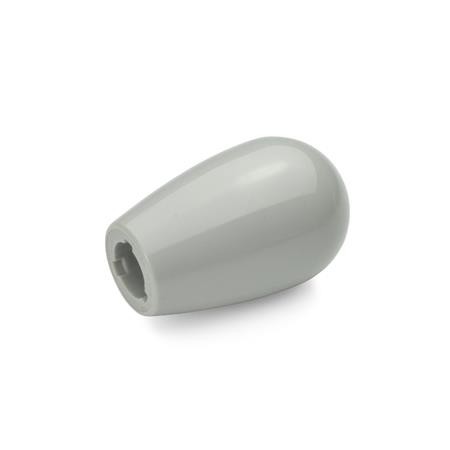

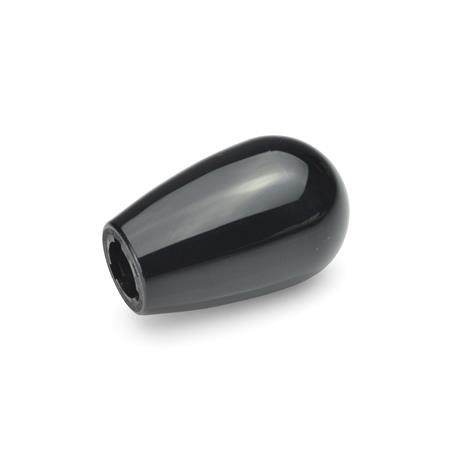

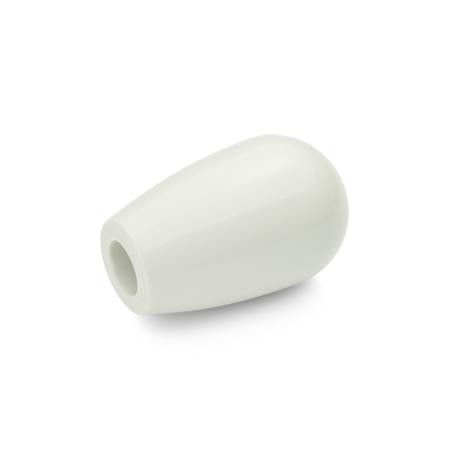

All colours (shiny finish) - black, RAL 9005 SW, orange, RAL 2004 OR, grey, RAL 7035 GR, yellow, RAL 1021 GB, blue, RAL 5024 BL, red, RAL 3000 RT, white, RAL 9002, Cleanline CL.

Select / Deselect Visible Columns

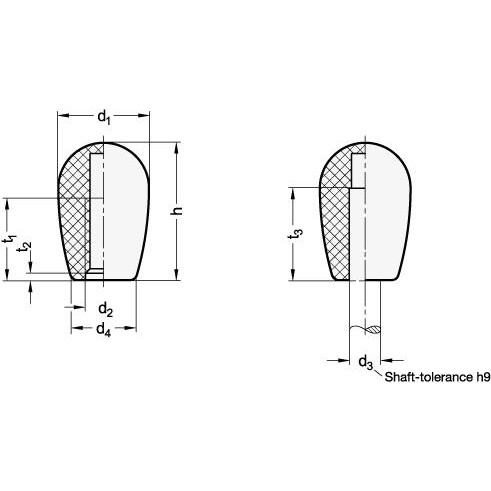

PartCoded1d2/d3ColourMateriald4ht1t2t3Mass

GN719.2-16-B6-SW16B6SWPA1225163.5170.004
GN719.2-16-B6-RT16B6RTPA1225163.5170.003
GN719.2-16-B6-CL16B6CLPA1225163.5170.004
GN719.2-16-M6-SW16M6SWPA1225163.5170.004
GN719.2-16-M6-OR16M6ORPA1225163.5170.08
GN719.2-16-M6-GR16M6GRPA1225163.5170.005
GN719.2-16-M6-GB16M6GBPA1225163.5170.004
GN719.2-16-M6-BL16M6BLPA1225163.5170.004
GN719.2-16-M6-RT16M6RTPA1225163.5170.004
GN719.2-20-M8-SW20M8SWPA1432203.5210.007
GN719.2-20-M8-OR20M8ORPA1432203.5210.008
GN719.2-20-M8-GR20M8GRPA1432203.5210.007
GN719.2-20-M8-GB20M8GBPA1432203.5210.007
GN719.2-20-M8-BL20M8BLPA1432203.5210.008
GN719.2-20-M8-RT20M8RTPA1432203.5210.007
GN719.2-20-B8-SW20B8SWPA1432203.5210.007
GN719.2-20-B8-RT20B8RTPA1432203.5210.007
GN719.2-20-B8-CL20B8CLPA1432203.5210.007
GN719.2-26-B8-SW26B8SWPA1742305250.016
GN719.2-26-B8-RT26B8RTPA1742305250.016
GN719.2-26-M8-SW26M8SWPA1742305300.015
GN719.2-26-M8-OR26M8ORPA1742305300.02
GN719.2-26-M8-GR26M8GRPA1742305300.017
GN719.2-26-M8-GB26M8GBPA1742305300.015
GN719.2-26-M8-BL26M8BLPA1742305300.02
GN719.2-26-M8-RT26M8RTPA1742305300.018
GN719.2-26-M10-SW26M10SWPA1742305300.016
GN719.2-26-M10-OR26M10ORPA1742305300.025
GN719.2-26-M10-GR26M10GRPA1742305300.02
GN719.2-26-M10-GB26M10GBPA1742305300.02
GN719.2-26-M10-BL26M10BLPA1742305300.02
GN719.2-26-M10-RT26M10RTPA1742305300.02
GN719.2-26-B10-SW26B10SWPA1742305300.015
GN719.2-26-B10-RT26B10RTPA1742305300.014
GN719.2-26-B10-CL26B10CLPA1742305300.014
GN719.2-34-M10-SW34M10SWPA2154.5358400.034
GN719.2-34-M10-OR34M10ORPA2154.5358400.04
GN719.2-34-M10-GR34M10GRPA2154.5358400.038
GN719.2-34-M10-GB34M10GBPA2154.5358400.039
GN719.2-34-M10-BL34M10BLPA2154.5358400.038
GN719.2-34-M10-RT34M10RTPA2154.5358400.034
GN719.2-34-M12-SW34M12SWPA2154.5358400.033
GN719.2-34-M12-OR34M12ORPA2154.5358400.02
GN719.2-34-M12-GR34M12GRPA2154.5358400.02
GN719.2-34-M12-GB34M12GBPA2154.5358400.02
GN719.2-34-M12-BL34M12BLPA2154.5358400.02
GN719.2-34-M12-RT34M12RTPA2154.5358400.02
GN719.2-34-B10-SW34B10SWPA2154.5358400.039
GN719.2-34-B10-RT34B10RTPA2154.5358400.038
GN719.2-34-B10-CL34B10CLPA2154.5358400.038
GN719.2-34-B12-SW34B12SWPA2154.5358400.036
GN719.2-34-B12-RT34B12RTPA2154.5358400.036
GN719.2-34-B12-CL34B12CLPA2154.5358400.036
#7058.812~7061.421#

Application Example

In the example below, GN719.2 domed knobs are being used as handles on beer taps.
