GN798.1 Stepped Revolving Handle, Stainless Steel Spindle



Select Values to Buy:

Tech Spec:



GN798.1 Stepped Revolving Handle, Stainless Steel Spindle

These revolving handles have a stepped shape consisting of two cylinders which gives the operator a better grip.

Specification

Plastic Technopolymer (Polyamide PA) KT temperature resistant up to 90° C, black, matt finish

Spindle - Stainless Steel, AISI 303

RoHS compliant

Also available with steel spindle GN798.

Select / Deselect Visible Columns

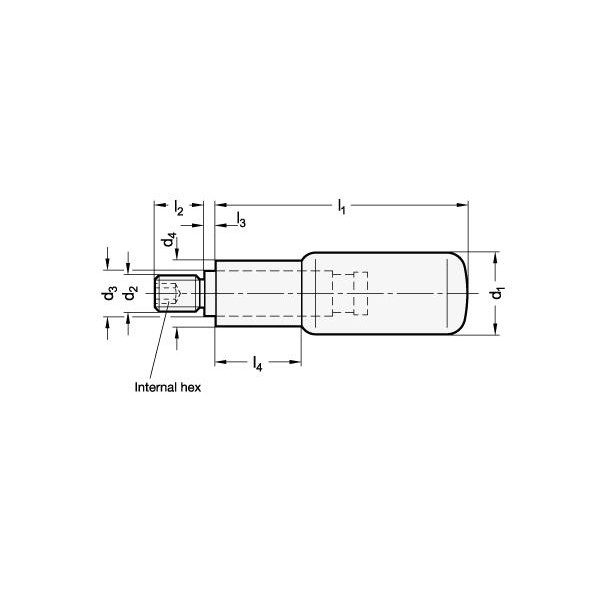

PartCodeMateriald1d2d3d4l1l2l3l4Mass

GN798.1-KT-16-M6KT16M6101341.5122.5150.028
GN798.1-KT-18-M6KT18M61014.556132.5190.035
GN798.1-KT-18-M8KT18M81014.556132.5190.035
GN798.1-KT-22-M8KT22M81418.559142.5210.082
GN798.1-KT-22-M10KT22M101418.559142.5210.085
GN798.1-KT-24-M8KT24M81418.574162.5270.09
GN798.1-KT-24-M10KT24M101418.574162.5270.09
GN798.1-KT-25-M10KT25M10162084162.5300.125
