GN798.8 Retractable Safety Handle, Automatic Return

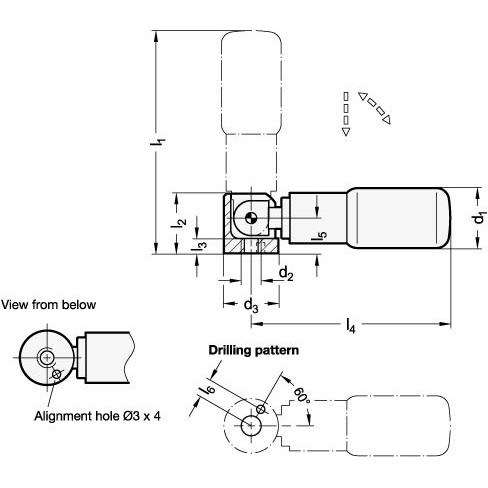

images/300/GN798.8-Safety-retractable-handles-Steel-retractable-handles-Stainless-Steel-drawing_H.png

CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

CAD Viewer Technical Data

Product Description

GN798.8 Retractable Safety Handle, Automatic Return

Safety retractable handles GN 798.8 are suitable for applications where the handle must not remain in the operating position.

In order to bring the handle into the operating position it has to be turned first through 90° to a stop against a torsion spring and then it is pushed against spring pressure into its hold position.

By maintaining the forward thrust on the handle, the handwheel can easily be rotated.

When releasing the handle, the springs return it back to the retracted position.

Specification

Handle - Plastic Technopolymer (Polyamide PA) KT, temperature resistant up to 90° C, black, matt finish, revolving.

Retractable mechanism - Stainless steel. Axle parts AISI 303, flat base Sintered Steel AISI 316
