GN3441 Base Plates, Plastic

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - Without rubber pad

Type AG - With rubber pad

Identification Number 1 - Round, smooth

Identification Number 2 - Round, stepped

Identification Number 3 - Round, stepped, with mounting holes

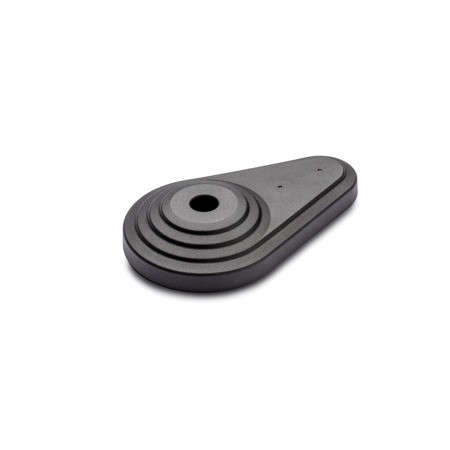

Identification Number 4 - Droplet shape, stepped, with mounting holes

GN3441, Base Plates, Plastic

Base plates GN 3441 are made of plastic, making them lightweight, resistant to corrosion and electrically insulating. They are used with threaded studs GN3440 or ball joints GN3440.1 for setting up and levelling machines, devices and equipment.

The shape of the base plate distributes the load over a large area and, in combination with the high-quality plastic, results in a high static load capacity.

The threaded studs or ball joints can be installed using a soft-head mallet or a press. The mounting holes in the base plate are sealed with a thin layer of plastic when delivered, which can be easily pierced or drilled through.

The static load capacity values specified in the table are non-binding guidelines; exceeding these values may result in deformation or component failure.

Specification

• Base Plate
• Plastic, polyamide (PA), glass fibre reinforced, black, matte finish, operating temperature -30° C to +100° C KAS
• Plastic, polyamide (PA) for identification numbers 1 / 2 / 3, glass fibre reinforced, operating temperature -30° C to +100° C, FDA compliant material, Blue, RAL 5005, matte finish, visually detectable, VDB
• Plastic, polypropylene (PP) for identification number 1 / 3, operating temperature 0° C to +80° C, graphite grey, RAL 7024, matte finish KPS
• Rubber pad for type AG, hardness 70 Shore A, black.
• Acrylonitrile butadiene rubber (NBR) for KAS and VDB.
• Ethylene propylene diene rubber (EPDM) for KPS.

Accessory

GN3440 Threaded Studs, steel, stainless steel or plastic.

GN3440.1 Ball Joints, plastic.
